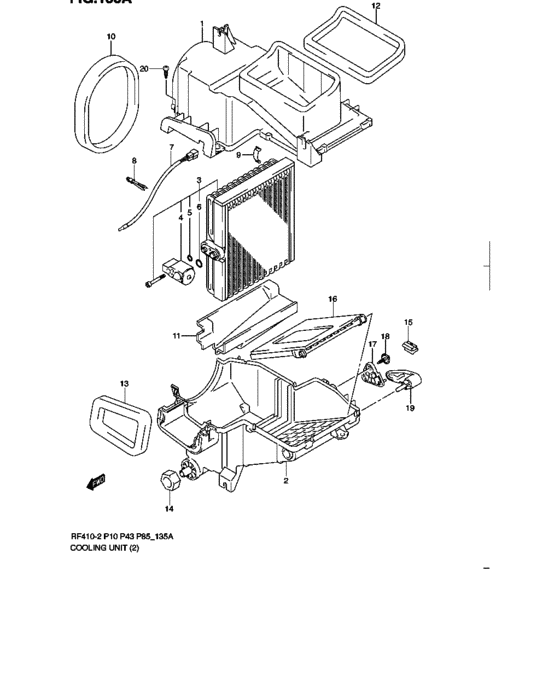

Cooling unit
21
| # | OEM | Part name |
|---|
| 0 |
95400-M79F0-100 |
Cooling unit |
| 1 |
95421-M79F0-000 |
Case, upper |
| 2 |
95422-M79F0-000 |
Case, lower |
| 3 |
95411-M81A2-000 |
Evaporator sub assy |
| 4 |
95431-M65D3-000 |
Valve, expansion |
| 5 |
95896-M50G0-000 |
O ring - D:2.4,id:13.4 |
| 6 |
95895-M50G0-000 |
O ring - D:2.4,id:10.8 |
| 7 |
95541-M79F0-000 |
Thermistor, evaporator |
| 8 |
95452-M60F2-000 |
Clamp, thermistor |
| 9 |
74133-M8200-000 |
Clamp, case |
| 10 |
95461-M79F0-000 |
Packing, heater |
| 11 |
95462-M79F0-000 |
Packing |
| 12 |
95463-M79F0-000 |
Packing |
| 13 |
95465-M79F0-000 |
Packing, expansion |
| 14 |
95466-M79F0-000 |
Packing, drain |
| 15 |
74151-M71B0-000 |
Clamp, Cable |
| 16 |
74270-M79F0-000 |
Door, air inlet box |
| 17 |
74281-M79F0-000 |
Lever, control |
| 18 |
74183-M8200-500 |
Screw, link |
| 19 |
74282-M79F0-000 |
Lever, door |
| 20 |
03112-M0416-A00 |
Screw |
| OEM |
Part name |
Category |
| 03112-M0416-A00 |
Screw |
Cooling unit |
| 74133-M8200-000 |
Clamp, case |
Cooling unit |
| 74151-M71B0-000 |
Clamp, Cable |
Cooling unit |
| 74183-M8200-500 |
Screw, link |
Cooling unit |
| 74270-M79F0-000 |
Door, air inlet box |
Cooling unit |
| 74281-M79F0-000 |
Lever, control |
Cooling unit |
| 74282-M79F0-000 |
Lever, door |
Cooling unit |
| 95400-M79F0-100 |
Cooling unit |
Cooling unit |
| 95411-M81A2-000 |
Evaporator sub assy |
Cooling unit |
| 95421-M79F0-000 |
Case, upper |
Cooling unit |
| 95422-M79F0-000 |
Case, lower |
Cooling unit |
| 95431-M65D3-000 |
Valve, expansion |
Cooling unit |
| 95452-M60F2-000 |
Clamp, thermistor |
Cooling unit |
| 95461-M79F0-000 |
Packing, heater |
Cooling unit |
| 95462-M79F0-000 |
Packing |
Cooling unit |
| 95463-M79F0-000 |
Packing |
Cooling unit |
| 95465-M79F0-000 |
Packing, expansion |
Cooling unit |
| 95466-M79F0-000 |
Packing, drain |
Cooling unit |
| 95541-M79F0-000 |
Thermistor, evaporator |
Cooling unit |
| 95895-M50G0-000 |
O ring - D:2.4,id:10.8 |
Cooling unit |
| 95896-M50G0-000 |
O ring - D:2.4,id:13.4 |
Cooling unit |
