RF308

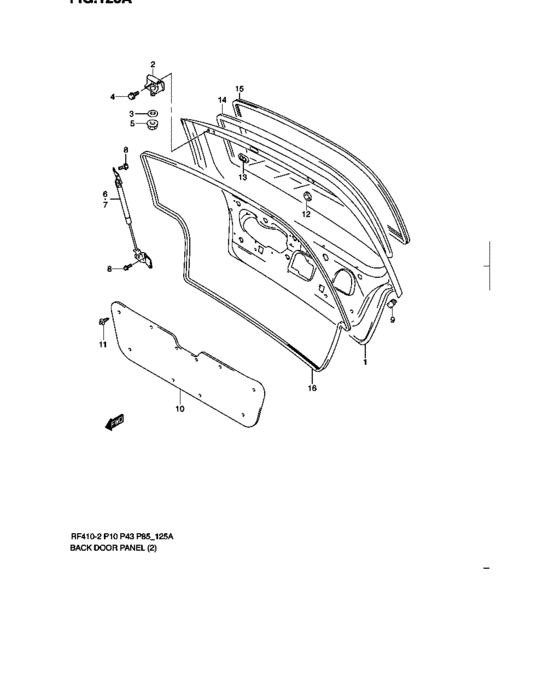

Back door panel 13
| # | OEM | Part name |
|---|---|---|
| 1 | 69100-M79G0-000 | Panel assy, back door |
| 2 | 69510-M76G0-000 | Hinge, back door |
| 3 | 69571-M76G0-000 | Packing, back dr hinge female |
| 4 | 01550-M0612-A00 | Screw |
| 5 | 08361-M2508-A00 | Nut |
| 6 | 81850-M79G0-000 | Balancer, back door rh |
| 7 | 81860-M79G0-000 | Balancer, back door lh |
| 9 | 82683-M60B0-000 | Cushion, trunk lid rear |
| 12 | 83919-M8200-000 | Cap |
| 14 | 84571-M79G2-000 | Glass, back door - Clear |
| 14 | 84571-M79G1-000 | Glass, back door - Green |
| 15 | 84623-M79G0-000 | Weatherstrip, back dr window |
| 16 | 84681-M79G0-000 | Weatherstrip, back dr opening |
| OEM | Part name | Category |
|---|---|---|
| 01550-M0612-A00 | Screw | Back door panel |
| 08361-M2508-A00 | Nut | Back door panel |
| 69100-M79G0-000 | Panel assy, back door | Back door panel |
| 69510-M76G0-000 | Hinge, back door | Back door panel |
| 69571-M76G0-000 | Packing, back dr hinge female | Back door panel |
| 81850-M79G0-000 | Balancer, back door rh | Back door panel |
| 81860-M79G0-000 | Balancer, back door lh | Back door panel |
| 82683-M60B0-000 | Cushion, trunk lid rear | Back door panel |
| 83919-M8200-000 | Cap | Back door panel |
| 84571-M79G1-000 | Glass, back door - Green | Back door panel |
| 84571-M79G2-000 | Glass, back door - Clear | Back door panel |
| 84623-M79G0-000 | Weatherstrip, back dr window | Back door panel |
| 84681-M79G0-000 | Weatherstrip, back dr opening | Back door panel |
