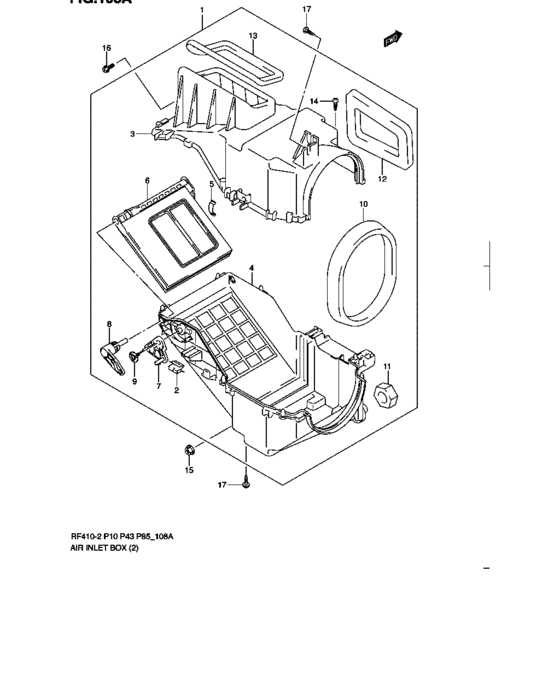

Air inlet box
17
| # | OEM | Part name |
|---|
| 1 |
74200-M79F0-000 |
Box assy, air inlet |
| 2 |
74151-M50F0-000 |
Clamp, Cable |
| 3 |
74211-M79F0-000 |
Case, upper |
| 4 |
74212-M79F0-000 |
Case, lower |
| 5 |
74133-M8200-000 |
Clamp, case |
| 6 |
74270-M79F0-000 |
Door, air inlet box |
| 7 |
74281-M79F0-000 |
Lever, control |
| 8 |
74282-M79F0-000 |
Lever, door |
| 9 |
74183-M8200-500 |
Screw, link |
| 10 |
95461-M79F0-000 |
Packing, heater |
| 11 |
95462-M79F0-000 |
Packing |
| 12 |
95463-M79F0-000 |
Packing |
| 13 |
95464-M79F0-000 |
Packing, fresh air |
| 14 |
03111-0416A-000 |
SCREW |
| 15 |
09159-06081-000 |
NUT |
| 16 |
09116-06167-000 |
BOLT(6X20) - Bolt (6x20) |
| 17 |
03541-M0516-A00 |
Screw, heater |
| OEM |
Part name |
Category |
| 03111-0416A-000 |
SCREW |
Air inlet box |
| 03541-M0516-A00 |
Screw, heater |
Air inlet box |
| 09116-06167-000 |
BOLT(6X20) - Bolt (6x20) |
Air inlet box |
| 09159-06081-000 |
NUT |
Air inlet box |
| 74133-M8200-000 |
Clamp, case |
Air inlet box |
| 74151-M50F0-000 |
Clamp, Cable |
Air inlet box |
| 74183-M8200-500 |
Screw, link |
Air inlet box |
| 74200-M79F0-000 |
Box assy, air inlet |
Air inlet box |
| 74211-M79F0-000 |
Case, upper |
Air inlet box |
| 74212-M79F0-000 |
Case, lower |
Air inlet box |
| 74270-M79F0-000 |
Door, air inlet box |
Air inlet box |
| 74281-M79F0-000 |
Lever, control |
Air inlet box |
| 74282-M79F0-000 |
Lever, door |
Air inlet box |
| 95461-M79F0-000 |
Packing, heater |
Air inlet box |
| 95462-M79F0-000 |
Packing |
Air inlet box |
| 95463-M79F0-000 |
Packing |
Air inlet box |
| 95464-M79F0-000 |
Packing, fresh air |
Air inlet box |
