Search › Model › RF308
RF308

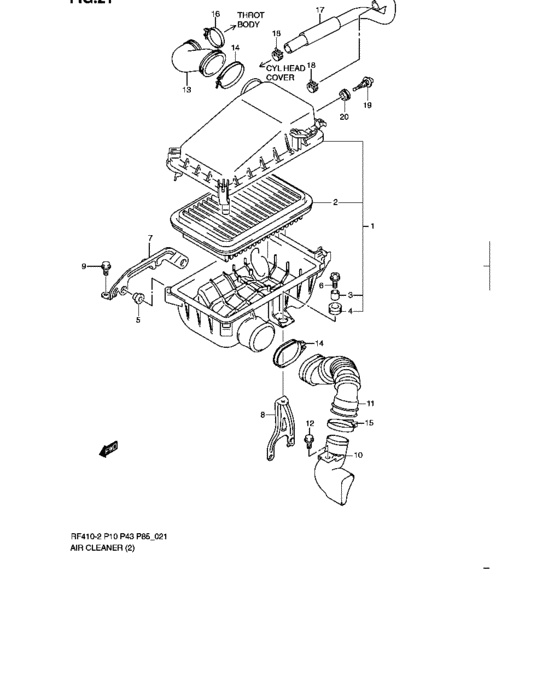

Air cleaner (RF410) 20
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-79GA0-000 | CLEANER ASSY,AIR |
| 2 | 13780-75F00-000 | ELEMENT,AIR CLEANER |
| 3 | 13772-75F00-000 | SPACER |
| 4 | 09320-M0902-200 | Cushion |
| 5 | 13723-M75F0-000 | Cushion |
| 6 | 09136-06141-000 | SCREW(6X25) |
| 7 | 13810-M79F0-000 | Bracket, no.1 |
| 8 | 13820-M79F0-100 | Bracket, no.2 |
| 9 | 01550-0612A-000 | Bolt |
| 10 | 13870-M79F0-000 | Pipe, cleaner inlet |
| 11 | 13871-M77G0-000 | Hose, inlet |
| 12 | 18495-50E00-000 | Bolt |
| 13 | 13881-M79GA-000 | Hose, outlet |
| 14 | 13875-M75F0-000 | Clamp |
| 15 | 09402-M5090-100 | Clamp |
| 16 | 09402-M5220-800 | Clamp |
| 17 | 11191-M79F0-000 | Hose, breather |
| 18 | 09401-18403-000 | CLIP - Clip, heater hose |
| 19 | 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp |
| 20 | 13655-M77E0-000 | Grommet |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Air cleaner (RF410) |
| 09136-06141-000 | SCREW(6X25) | Air cleaner (RF410) |
| 09320-M0902-200 | Cushion | Air cleaner (RF410) |
| 09401-18403-000 | CLIP - Clip, heater hose | Air cleaner (RF410) |
| 09402-M5090-100 | Clamp | Air cleaner (RF410) |
| 09402-M5220-800 | Clamp | Air cleaner (RF410) |
| 11191-M79F0-000 | Hose, breather | Air cleaner (RF410) |
| 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp | Air cleaner (RF410) |
| 13655-M77E0-000 | Grommet | Air cleaner (RF410) |
| 13700-79GA0-000 | CLEANER ASSY,AIR | Air cleaner (RF410) |
| 13723-M75F0-000 | Cushion | Air cleaner (RF410) |
| 13772-75F00-000 | SPACER | Air cleaner (RF410) |
| 13780-75F00-000 | ELEMENT,AIR CLEANER | Air cleaner (RF410) |
| 13810-M79F0-000 | Bracket, no.1 | Air cleaner (RF410) |
| 13820-M79F0-100 | Bracket, no.2 | Air cleaner (RF410) |
| 13870-M79F0-000 | Pipe, cleaner inlet | Air cleaner (RF410) |
| 13871-M77G0-000 | Hose, inlet | Air cleaner (RF410) |
| 13875-M75F0-000 | Clamp | Air cleaner (RF410) |
| 13881-M79GA-000 | Hose, outlet | Air cleaner (RF410) |
| 18495-50E00-000 | Bolt | Air cleaner (RF410) |
