Search › Model › RE91S
RE91S

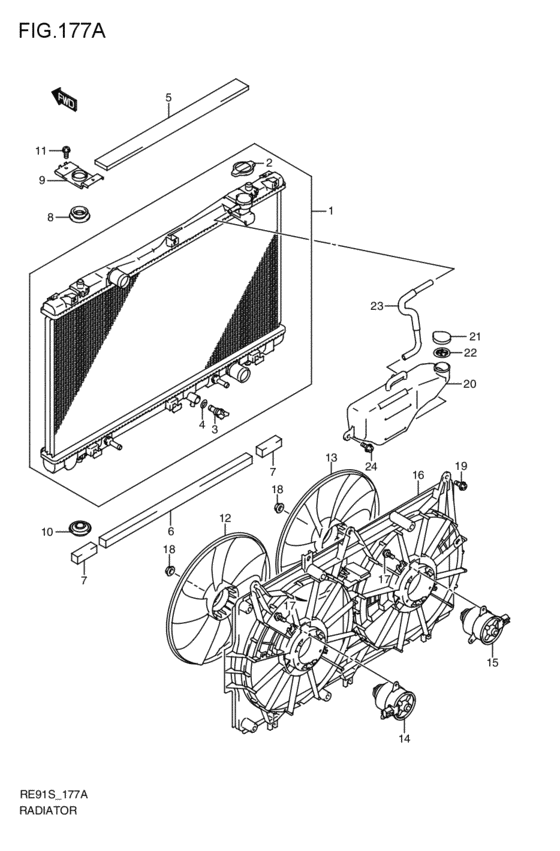

radiator (2009-06-01~) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 17700-57L30-000 | RADIATOR ASSY |
| 2 | 17920-75F00-000 | CAP,RADIATOR |
| 3 | 17751-61A00-000 | PLUG,DRAIN |
| 4 | 17759-72010-000 | O-RING |
| 5 | 17794-57L00-000 | SEAL,RADIATOR |
| 6 | 17795-57L00-000 | SEAL,RADIATOR LOWER NO.1 |
| 7 | 17795-57L10-000 | SEAL,RADIATOR LOWER NO.2 |
| 8 | 17812-54G00-000 | MOUNT,RDTR SUPPORT UPR |
| 9 | 17861-57L00-000 | BRACKET,RDTR SUPPORT UPPER |
| 10 | 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR |
| 11 | 02162-0612A-000 | SCREW - Bolt, bracket |
| 12 | 17111-57L00-000 | FAN,COOLING (5 BLADES) |
| 13 | 17111-57L10-000 | FAN,COOLING (7 BLADES) |
| 14 | 17120-80JA0-000 | MOTOR ASSY,COOLING FAN |
| 15 | 17120-57L00-000 | MOTOR ASSY,COOLING FAN |
| 16 | 17760-57L00-000 | SHROUD ASSY,FAN |
| 17 | 17129-50F10-000 | SCREW,FAN MOTOR |
| 18 | 08316-2005A-000 | NUT |
| 19 | 02162-0616A-000 | SCREW |
| 19 | 02162-0616B-000 | SCREW - Bolt, adjust |
| 20 | 17931-57L00-000 | TANK,WATER RESERVE |
| 21 | 17932-57L00-000 | Cap,water rsvr tank |
| 21 | 17932-76M10-000 | CAP,WATER RSVR TANK |
| 22 | 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap |
| 23 | 17939-57L00-000 | HOSE,RDTR TO RSV TANK |
| OEM | Part name | Category |
|---|---|---|
| 02162-0612A-000 | SCREW - Bolt, bracket | radiator (2009-06-01~) |
| 02162-0616A-000 | SCREW | radiator (2009-06-01~) |
| 02162-0616B-000 | SCREW - Bolt, adjust | radiator (2009-06-01~) |
| 08316-2005A-000 | NUT | radiator (2009-06-01~) |
| 17111-57L00-000 | FAN,COOLING (5 BLADES) | radiator (2009-06-01~) |
| 17111-57L10-000 | FAN,COOLING (7 BLADES) | radiator (2009-06-01~) |
| 17120-57L00-000 | MOTOR ASSY,COOLING FAN | radiator (2009-06-01~) |
| 17120-80JA0-000 | MOTOR ASSY,COOLING FAN | radiator (2009-06-01~) |
| 17129-50F10-000 | SCREW,FAN MOTOR | radiator (2009-06-01~) |
| 17700-57L30-000 | RADIATOR ASSY | radiator (2009-06-01~) |
| 17751-61A00-000 | PLUG,DRAIN | radiator (2009-06-01~) |
| 17759-72010-000 | O-RING | radiator (2009-06-01~) |
| 17760-57L00-000 | SHROUD ASSY,FAN | radiator (2009-06-01~) |
| 17794-57L00-000 | SEAL,RADIATOR | radiator (2009-06-01~) |
| 17795-57L00-000 | SEAL,RADIATOR LOWER NO.1 | radiator (2009-06-01~) |
| 17795-57L10-000 | SEAL,RADIATOR LOWER NO.2 | radiator (2009-06-01~) |
| 17812-54G00-000 | MOUNT,RDTR SUPPORT UPR | radiator (2009-06-01~) |
| 17861-57L00-000 | BRACKET,RDTR SUPPORT UPPER | radiator (2009-06-01~) |
| 17878-75F00-000 | MOUNT,RDTR SUPPORT LWR | radiator (2009-06-01~) |
| 17920-75F00-000 | CAP,RADIATOR | radiator (2009-06-01~) |
| 17931-57L00-000 | TANK,WATER RESERVE | radiator (2009-06-01~) |
| 17932-57L00-000 | Cap,water rsvr tank | radiator (2009-06-01~) |
| 17932-76M10-000 | CAP,WATER RSVR TANK | radiator (2009-06-01~) |
| 17933-60B00-000 | RUBBER,WTR RSV TANK CAP - Rubber, tank cap | radiator (2009-06-01~) |
| 17939-57L00-000 | HOSE,RDTR TO RSV TANK | radiator (2009-06-01~) |
