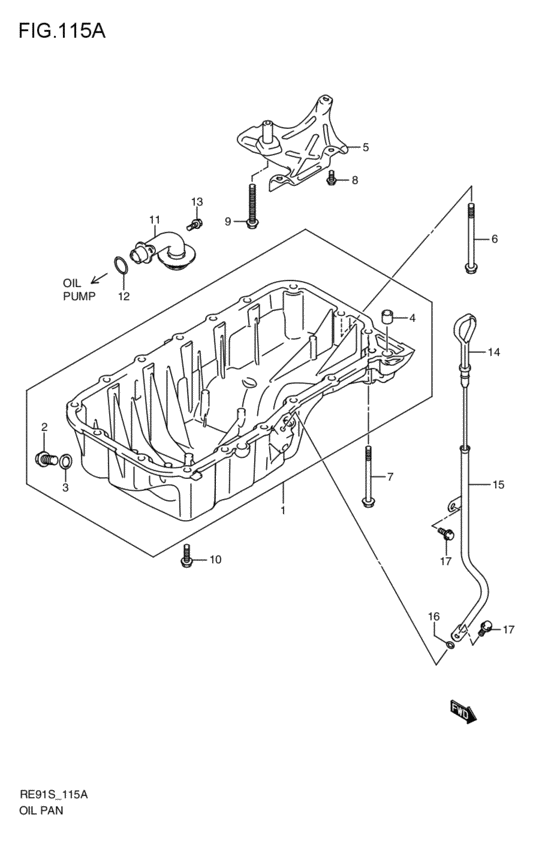

| 01550-0612A-000 |
Bolt |
oil pan (2009-06-01~) |
| 01550-0616A-000 |
Bolt |
oil pan (2009-06-01~) |
| 01550-0645A-000 |
Bolt |
oil pan (2009-06-01~) |
| 01550-0825A-000 |
Bolt |
oil pan (2009-06-01~) |
| 04211-13149-000 |
PIN |
oil pan (2009-06-01~) |
| 09103-08230-000 |
BOLT(8X100) - Bolt (8x100) |
oil pan (2009-06-01~) |
| 09103-08525-000 |
BOLT(8X120) |
oil pan (2009-06-01~) |
| 09168-14015-000 |
GASKET(14X20X1.5) - Gasket, oil hose union |
oil pan (2009-06-01~) |
| 09280-10016-000 |
O RING(D:1.9,ID:9.8) |
oil pan (2009-06-01~) |
| 09280-22020-000 |
O RING(D:2.4,ID:21.8) - O ring (d:2.4,id:21.8) |
oil pan (2009-06-01~) |
| 11500-85830-000 |
PAN SET,OIL |
oil pan (2009-06-01~) |
| 11518-63J10-000 |
Plug,Oil Drain |
oil pan (2009-06-01~) |
| 11540-78K00-000 |
PLATE,OIL BAFFLE |
oil pan (2009-06-01~) |
| 16520-57L00-000 |
STRAINER,OIL PUMP |
oil pan (2009-06-01~) |
| 16910-54L00-000 |
Gauge comp,oil level |
oil pan (2009-06-01~) |
| 16910-54L01-000 |
GAUGE,OIL LEVEL |
oil pan (2009-06-01~) |
| 16930-54L00-000 |
Guide comp,oil level gauge |
oil pan (2009-06-01~) |
| 16930-54L01-000 |
GUIDE,OIL LEVEL GAUGE |
oil pan (2009-06-01~) |
