RE91S

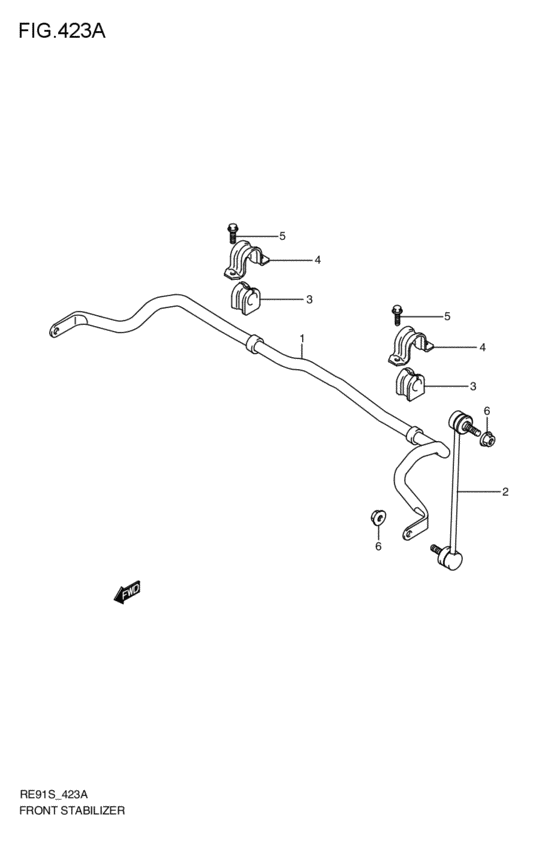

front stabilizer (2009-06-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 42310-57L00-000 | BAR,FR STABILIZER |
| 2 | 42420-80J00-000 | JOINT,STABILIZER BAR |
| 2 | 42420-80J01-000 | Stabilizer bar link |
| 3 | 42431-57L00-000 | MOUNT,STAB BAR |
| 4 | 42441-57L00-000 | BRACKET,STABILIZER MOUNT |
| 5 | 09117-08101-000 | BOLT(8X25) |
| 6 | 08316-1010A-000 | NUT - Nut, kick starter |
| OEM | Part name | Category |
|---|---|---|
| 08316-1010A-000 | NUT - Nut, kick starter | front stabilizer (2009-06-01~) |
| 09117-08101-000 | BOLT(8X25) | front stabilizer (2009-06-01~) |
| 42310-57L00-000 | BAR,FR STABILIZER | front stabilizer (2009-06-01~) |
| 42420-80J00-000 | JOINT,STABILIZER BAR | front stabilizer (2009-06-01~) |
| 42420-80J01-000 | Stabilizer bar link | front stabilizer (2009-06-01~) |
| 42431-57L00-000 | MOUNT,STAB BAR | front stabilizer (2009-06-01~) |
| 42441-57L00-000 | BRACKET,STABILIZER MOUNT | front stabilizer (2009-06-01~) |
