RE7

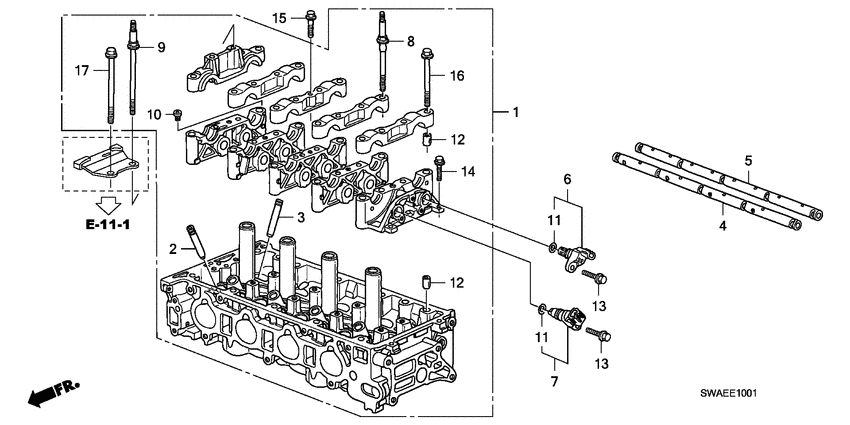

Cylinder head (2.4L) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 12100-RAA-A01 | Head assy |
| 2 | 12204-PNA-305 | Guide - IN. VALVE (OS) |
| 3 | 12205-PNA-305 | Guide - EX. VALVE (OS) |
| 4 | 14631-PNE-000 | Shaft - IN. ROCKER |
| 5 | 14633-R40-A00 | Shaft - EX. ROCKER |
| 6 | 37510-PNB-003 | Sensor assy - TDC |
| 7 | 37510-RAA-A01 | Sensor assy - TDC |
| 8 | 90011-PNA-003 | Bolt A, Head Cover |
| 9 | 90012-PNA-003 | Bolt b - HEAD COVER |
| 10 | 90083-PNA-000 | Bolt - SEALING, 10MM |
| 11 | 91333-PNA-003 | O-ring - 15X1.9 |
| OEM | Part name | Category |
|---|---|---|
| 12100-RAA-A01 | Head assy | Cylinder head (2.4L) |
| 12204-PNA-305 | Guide - IN. VALVE (OS) | Cylinder head (2.4L) |
| 12205-PNA-305 | Guide - EX. VALVE (OS) | Cylinder head (2.4L) |
| 14631-PNE-000 | Shaft - IN. ROCKER | Cylinder head (2.4L) |
| 14633-R40-A00 | Shaft - EX. ROCKER | Cylinder head (2.4L) |
| 37510-PNB-003 | Sensor assy - TDC | Cylinder head (2.4L) |
| 37510-RAA-A01 | Sensor assy - TDC | Cylinder head (2.4L) |
| 90011-PNA-003 | Bolt A, Head Cover | Cylinder head (2.4L) |
| 90012-PNA-003 | Bolt b - HEAD COVER | Cylinder head (2.4L) |
| 90083-PNA-000 | Bolt - SEALING, 10MM | Cylinder head (2.4L) |
| 91333-PNA-003 | O-ring - 15X1.9 | Cylinder head (2.4L) |
