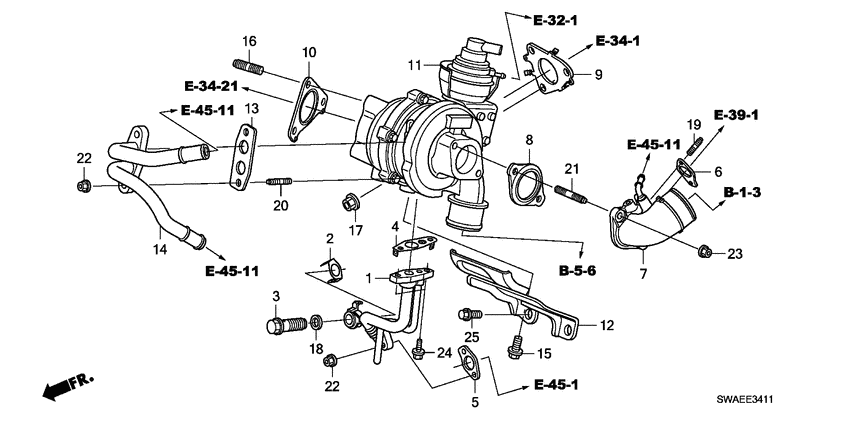

| 15530-RFW-G00 |
Pipe comp - TURBOCHARGER OIL |
Turbocharger (DIESEL; '10) |
| 15533-RWC-A01 |
Gasket - OIL FEED PIPE |
Turbocharger (DIESEL; '10) |
| 15534-RL0-G00 |
BOLT, TURBOCHARGER OIL FEED FILTER |
Turbocharger (DIESEL; '10) |
| 15543-RFW-G01 |
Gasket - TURBOCHARGER OIL PIPE |
Turbocharger (DIESEL; '10) |
| 15544-RBD-E01 |
Gasket b - OIL RETURN PIPE |
Turbocharger (DIESEL; '10) |
| 17136-RMA-E01 |
Gasket - BREATHER PIPE |
Turbocharger (DIESEL; '10) |
| 17226-RFW-G00 |
Joint comp - AIR FLOW |
Turbocharger (DIESEL; '10) |
| 17229-RL0-G01 |
Gasket - AIR FLOW JOINT |
Turbocharger (DIESEL; '10) |
| 18233-RL0-G01 |
Gasket a - EX. |
Turbocharger (DIESEL; '10) |
| 18234-RL0-G01 |
Gasket b - EX. |
Turbocharger (DIESEL; '10) |
| 18900-RFW-G01 |
Turbocharger assy |
Turbocharger (DIESEL; '10) |
| 18905-RFW-G00 |
Stay comp - TURBOCHARGER |
Turbocharger (DIESEL; '10) |
| 19524-RFW-G01 |
Packing - TURBOCHARGER WATER PIPE |
Turbocharger (DIESEL; '10) |
| 19545-RFW-G00 |
Pipe comp - TURBOCHARGER WATER |
Turbocharger (DIESEL; '10) |
| 90010-RL0-G01 |
Bolt - SPECIAL, 10X19 |
Turbocharger (DIESEL; '10) |
| 90065-RL0-G00 |
Bolt - STUD, 10X24 |
Turbocharger (DIESEL; '10) |
| 90212-RSR-E01 |
Nut - FLANGE, 10MM |
Turbocharger (DIESEL; '10) |
| 90428-RWC-A00 |
Washer - SEALING, 16MM |
Turbocharger (DIESEL; '10) |
