RE6

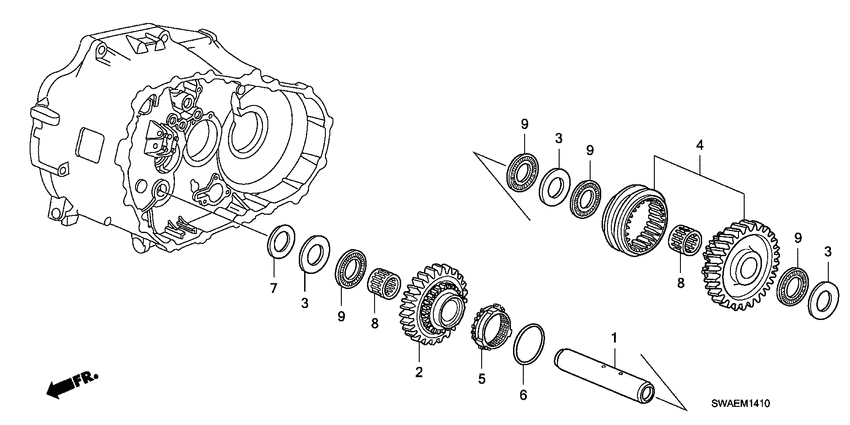

Reverse gear shaft (DIESEL) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 23261-PYZ-000 | Shaft - REVERSE GEAR |
| 2 | 23541-PYZ-000 | Gear - REVERSE DRIVE |
| 3 | 23546-PYZ-000 | Washer - THRUST, 20X36X2 |
| 4 | 23627-RM0-000 | Sleeve set - REVERSE |
| 5 | 23642-PR8-010 | Ring - BLOCKING, 44MM |
| 6 | 23651-PB6-960 | Spring - SYNCHRONIZER (44MM) |
| 7 | 23926-PY5-000 | Washer - SPRING, 33MM |
| 8 | 91106-PYZ-003 | Bearing - NEEDLE, 20X25X19 |
| 9 | 91132-PR8-003 | Bearing - THRUST NEEDLE, 20X37X2.5 |
| OEM | Part name | Category |
|---|---|---|
| 23261-PYZ-000 | Shaft - REVERSE GEAR | Reverse gear shaft (DIESEL) |
| 23541-PYZ-000 | Gear - REVERSE DRIVE | Reverse gear shaft (DIESEL) |
| 23546-PYZ-000 | Washer - THRUST, 20X36X2 | Reverse gear shaft (DIESEL) |
| 23627-RM0-000 | Sleeve set - REVERSE | Reverse gear shaft (DIESEL) |
| 23642-PR8-010 | Ring - BLOCKING, 44MM | Reverse gear shaft (DIESEL) |
| 23651-PB6-960 | Spring - SYNCHRONIZER (44MM) | Reverse gear shaft (DIESEL) |
| 23926-PY5-000 | Washer - SPRING, 33MM | Reverse gear shaft (DIESEL) |
| 91106-PYZ-003 | Bearing - NEEDLE, 20X25X19 | Reverse gear shaft (DIESEL) |
| 91132-PR8-003 | Bearing - THRUST NEEDLE, 20X37X2.5 | Reverse gear shaft (DIESEL) |
