RE306

Suzuki KEI-SWIFT · 3,684 parts · 159 categories
RE306 ×

← Back to categories

3,684 items

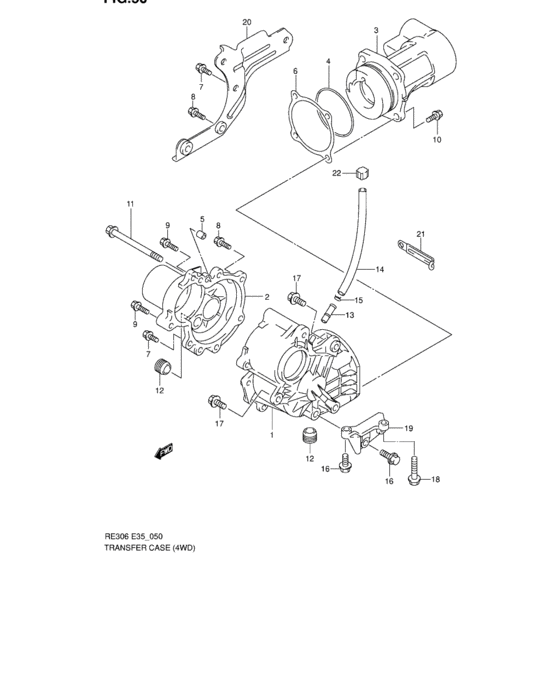

Transfer case (4WD) 47
#OEMPart name
1 29510-75810-000 CASE,T/F,L
1 29510-78810-000 Case,t/f left
1 29510-85811-000 CASE SET,T/F LEFT
2 29521-75F91-000 CASE,T/F,R
2 29521-78G01-000 CASE,TRANSFER,R
3 29271-75F90-000 RETAINER,T/F OUTPUT
4 09280-76008-000 O RING(D:3.1,ID:74) - O ring, rr final housing
5 04211-09169-000 PIN
6 29261-75F90-030 SHIM,T/F RETAINER T:0.30
6 29261-75F90-200 SHIM,T/F RETAINER T:2.00
6 29261-75F90-203 SHIM,T/F RETAINER T:2.03
6 29261-75F90-206 SHIM,T/F RETAINER T:2.06
6 29261-75F90-209 SHIM,T/F RETAINER T:2.09
6 29261-75F90-212 SHIM,T/F RETAINER T:2.12
6 29261-75F90-215 SHIM,T/F RETAINER T:2.15
6 29261-75F90-218 SHIM,T/F RETAINER T:2.18
6 29261-75F90-221 SHIM,T/F RETAINER T:2.21
6 29261-75F90-224 SHIM,T/F RETAINER T:2.24
6 29261-75F90-227 SHIM,T/F RETAINER T:2.27
7 01550-08303-000 Bolt
7 01550-0830B-000 Bolt
7 01550-0830A-000 Bolt - Bolt, mount oil seal cover
8 01550-08403-000 Bolt
8 01550-0840B-000 Bolt
8 01550-0840A-000 Bolt
9 01550-08453-000 Bolt,cylinder h
9 01550-0845B-000 Bolt
9 01550-0845A-000 Bolt - Bolt, oil pump (s)
10 01550-10353-000 Bolt
10 01550-1035A-000 Bolt - Bolt, fr fork upper
11 09103-10148-000 BOLT(10X110) - Bolt (l:110)
12 09246-16010-000 PLUG
12 09246-16021-000 Plug,t/m Oil Drain
13 09364-08004-000 UNION
14 09352-70113-600 HOSE(7X11X600)
14 09352-70119-600 Hose(7X11X600)
15 09401-11403-000 CLIP
16 01550-10303-000 Bolt - Bolt, axle housing
16 01550-1030B-000 Bolt - Bolt, axle housing rear
16 01550-1030A-000 Bolt
18 01550-10603-000 Bolt
18 01550-1060B-000 Bolt
18 01550-1060A-000 Bolt
19 29531-76G10-000 STIFFENER,T/F CASE
20 29551-78G01-000 BRACKET,T/F RR MOUNT
21 09404-10417-000 CLAMP(L:97)
22 27991-65D01-000 PLUG,BREATHER
