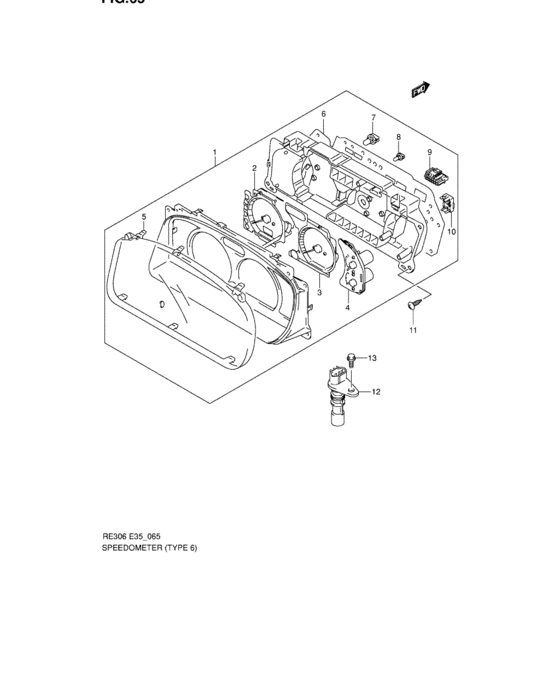

Speedometer (TYPE 6,7,8)
16
| # | OEM | Part name |
|---|
| 1 |
34100-83H50-000 |
SPEEDOMETER ASSY,COMB |
| 2 |
34120-83H10-000 |
BODY ASSY,SPEEDOMETER |
| 3 |
34220-83H10-000 |
BODY ASSY,TACHOMETER |
| 4 |
34320-83H10-000 |
BODY ASSY,FUEL METER |
| 5 |
34112-81A00-000 |
GLASS,METER WINDOW |
| 6 |
34152-83H30-000 |
PLATE,PRINTED |
| 7 |
34171-70G00-000 |
BULB,14V 3.4W G20 |
| 8 |
34171-70G10-000 |
BULB,14V 1.4W |
| 9 |
34191-65D00-000 |
BUZZER ASSY,WARNING |
| 10 |
34155-82DG0-000 |
CIRCUIT,ABS WARNING |
| 11 |
03541-05203-000 |
Screw |
| 11 |
03541-0520A-000 |
SCREW |
| 12 |
34960-65G00-000 |
SENSOR ASSY,SPEED |
| 13 |
01550-06163-000 |
Bolt |
| 13 |
01550-0616B-000 |
Bolt |
| 13 |
01550-0616A-000 |
Bolt |
| OEM |
Part name |
Category |
| 01550-06163-000 |
Bolt |
Speedometer (TYPE 6,7,8) |
| 01550-0616A-000 |
Bolt |
Speedometer (TYPE 6,7,8) |
| 01550-0616B-000 |
Bolt |
Speedometer (TYPE 6,7,8) |
| 03541-05203-000 |
Screw |
Speedometer (TYPE 6,7,8) |
| 03541-0520A-000 |
SCREW |
Speedometer (TYPE 6,7,8) |
| 34100-83H50-000 |
SPEEDOMETER ASSY,COMB |
Speedometer (TYPE 6,7,8) |
| 34112-81A00-000 |
GLASS,METER WINDOW |
Speedometer (TYPE 6,7,8) |
| 34120-83H10-000 |
BODY ASSY,SPEEDOMETER |
Speedometer (TYPE 6,7,8) |
| 34152-83H30-000 |
PLATE,PRINTED |
Speedometer (TYPE 6,7,8) |
| 34155-82DG0-000 |
CIRCUIT,ABS WARNING |
Speedometer (TYPE 6,7,8) |
| 34171-70G00-000 |
BULB,14V 3.4W G20 |
Speedometer (TYPE 6,7,8) |
| 34171-70G10-000 |
BULB,14V 1.4W |
Speedometer (TYPE 6,7,8) |
| 34191-65D00-000 |
BUZZER ASSY,WARNING |
Speedometer (TYPE 6,7,8) |
| 34220-83H10-000 |
BODY ASSY,TACHOMETER |
Speedometer (TYPE 6,7,8) |
| 34320-83H10-000 |
BODY ASSY,FUEL METER |
Speedometer (TYPE 6,7,8) |
| 34960-65G00-000 |
SENSOR ASSY,SPEED |
Speedometer (TYPE 6,7,8) |
