Search › Model › RE306
RE306

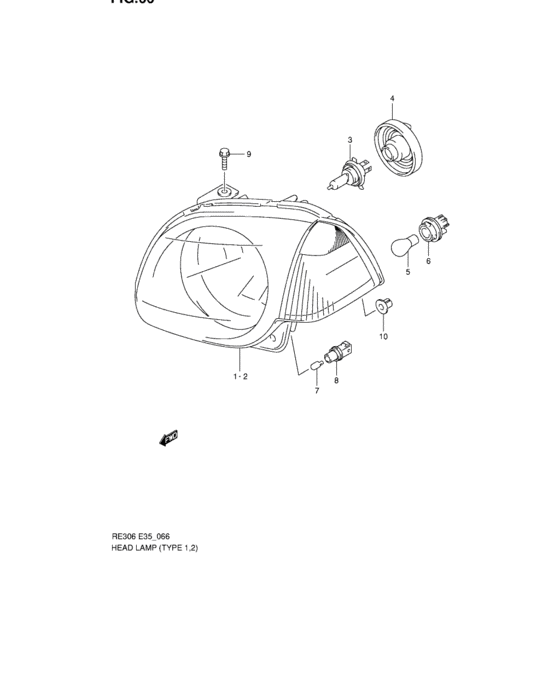

Headlamp (TYPE 1,2) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 35120-74G01-000 | UNIT,HEADLAMP,R |
| 2 | 35320-74G01-000 | UNIT,HEADLAMP,L |
| 3 | 09471-12060-000 | BULB(12V60/55W,H4) - Bulb (12v,60/55w,h4) |
| 4 | 35125-75F00-000 | COVER,SOCKET |
| 5 | 09471-12186-000 | BULB(12V21W,AMBER) |
| 6 | 35618-74G00-000 | SOCKET,TURN LAMP |
| 7 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 7 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 8 | 36118-70G00-000 | SOCKET,POSITION LAMP |
| 9 | 09122-76001-000 | SCREW(6X16) |
| 10 | 35153-74G00-000 | GROMMET,HEADLAMP |
| OEM | Part name | Category |
|---|---|---|
| 09122-76001-000 | SCREW(6X16) | Headlamp (TYPE 1,2) |
| 09471-12060-000 | BULB(12V60/55W,H4) - Bulb (12v,60/55w,h4) | Headlamp (TYPE 1,2) |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Headlamp (TYPE 1,2) |
| 09471-12186-000 | BULB(12V21W,AMBER) | Headlamp (TYPE 1,2) |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Headlamp (TYPE 1,2) |
| 35120-74G01-000 | UNIT,HEADLAMP,R | Headlamp (TYPE 1,2) |
| 35125-75F00-000 | COVER,SOCKET | Headlamp (TYPE 1,2) |
| 35153-74G00-000 | GROMMET,HEADLAMP | Headlamp (TYPE 1,2) |
| 35320-74G01-000 | UNIT,HEADLAMP,L | Headlamp (TYPE 1,2) |
| 35618-74G00-000 | SOCKET,TURN LAMP | Headlamp (TYPE 1,2) |
| 36118-70G00-000 | SOCKET,POSITION LAMP | Headlamp (TYPE 1,2) |
