Search › Model › RE306

RE306

Suzuki KEI-SWIFT · 3,684 parts · 159 categories

3,684 items

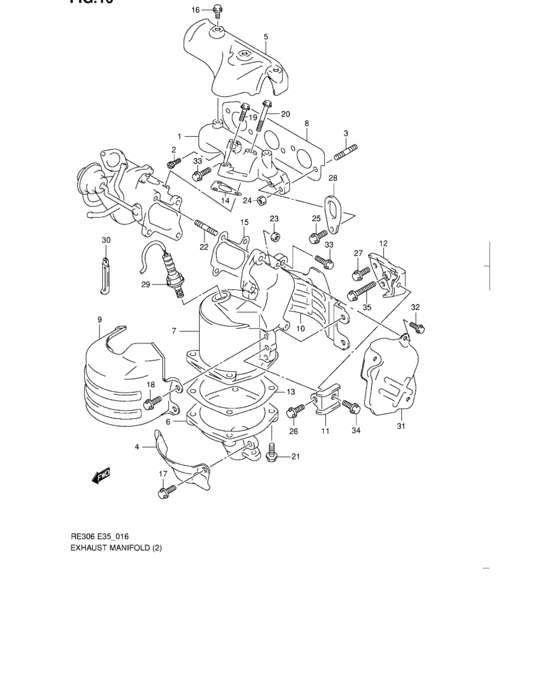

Exhaust manifold (TYPE 4,5,6,7,8) 61

#	OEM	Part name
1	14111-78G61-000	マニホールド,エキゾースト
1	14111-78G62-000	MANIFOLD,EXH
2	14118-73G01-000	BOLT,EXH MANF
3	09108-08256-000	BOLT,STUD(8X36)
3	09108-08268-000	BOLT,STUD
4	14120-83G50-000	COVER,CTLST OUTLET PIPE
5	14131-83G51-000	COVER,EXH MANF
6	14137-83G50-000	PIPE,CTLST OUTLET
7	14100-83860-000	CASE SET,CATALYST
8	14141-83G00-000	ガスケット,エキゾーストマニホールド
8	14141-83G01-000	GASKET,EXH MANF
9	14170-83G50-000	COVER,CTLST CASE
10	14171-83G50-000	カバー,キャタリストケース,リヤ
10	14171-83G51-000	COVER,CTLST CASE,RR
11	14173-83G51-000	ブラケット,キャタリストケース,NO.2
11	14173-83G52-000	BRACKET,CTLST CASE NO.2
12	14180-82G50-000	ブラケット,キャタリストケース,NO.1
12	14180-82G5V-000	BRACKET,CTLST CASE NO.1
12	14180-82G60-000	ブラケット,キャタリストケース,NO.1
12	01550-1016B-000	Bolt - Plug, oil gallery
12	14180-82G61-000	BRACKET,CTLST CASE NO.1
12	01550-1016A-000	Bolt - Plug, oil gallery
12	01550-10163-000	Bolt
12	14180-82G62-000	BRACKET,CTLST CASE NO.1
13	14181-78F00-000	GASKET,CATALYST CASE
14	14181-78F50-000	GASKET,EXH MANF
15	14182-85551-000	GASKET,EXH PIPE - Gasket, t/c outlet pipe
16	09103-06168-000	BOLT(6X10)
18	09103-06187-000	Bolt (6x20)
18	01550-06207-000	Bolt
19	09103-08118-000	BOLT(8X35)
20	09103-08368-000	BOLT(8X65)
21	09103-10315-000	BOLT(10X30)
22	09108-08258-000	BOLT,STUD
22	09108-08264-000	BOLT,STUD
23	09140-08023-000	Nut (ll/x)
23	09140-08023-XC0	NUT
23	09159-08130-000	NUT
24	09159-08056-000	NUT
24	08316-10083-000	Nut
24	08316-1008B-000	NUT
25	01550-08163-000	Bolt, holder
25	01550-0816B-000	Bolt
25	01550-0816A-000	Bolt - Bolt, rear
27	01550-08203-000	Bolt
27	01550-0820B-000	Bolt
27	01550-0820A-000	Bolt - Bolt, funnel bracket
28	11851-62B00-000	HOOK
29	18213-83G50-000	センサ,オキシジェン
29	18213-83G51-000	SENSOR,OXYGEN
30	09404-06434-000	CLAMP(L:80 T:1.0)
30	09404-06433-000	CLAMP(L:80) - Clamp (l:80)
30	09404-06436-000	Clamp(L:80)
30	09404-06036-000	Clamp(L:80)
31	14172-83G50-000	COVER,CTLST CASE
33	14118-70G50-000	BOLT,EXH MANF 8X25
34	01550-10203-000	Bolt - Bolt, lower
34	01550-1020A-000	Bolt - Bolt, bal sprocket
35	01550-08453-000	Bolt,cylinder h
35	01550-0845B-000	Bolt
35	01550-0845A-000	Bolt - Bolt, oil pump (s)

OEM	Part name	Category
01550-06207-000	Bolt	Exhaust manifold (TYPE 4,5,6,7,8)
01550-08163-000	Bolt, holder	Exhaust manifold (TYPE 4,5,6,7,8)
01550-0816A-000	Bolt - Bolt, rear	Exhaust manifold (TYPE 4,5,6,7,8)
01550-0816B-000	Bolt	Exhaust manifold (TYPE 4,5,6,7,8)
01550-08203-000	Bolt	Exhaust manifold (TYPE 4,5,6,7,8)
01550-0820A-000	Bolt - Bolt, funnel bracket	Exhaust manifold (TYPE 4,5,6,7,8)
01550-0820B-000	Bolt	Exhaust manifold (TYPE 4,5,6,7,8)
01550-08453-000	Bolt,cylinder h	Exhaust manifold (TYPE 4,5,6,7,8)
01550-0845A-000	Bolt - Bolt, oil pump (s)	Exhaust manifold (TYPE 4,5,6,7,8)
01550-0845B-000	Bolt	Exhaust manifold (TYPE 4,5,6,7,8)
01550-10163-000	Bolt	Exhaust manifold (TYPE 4,5,6,7,8)
01550-1016A-000	Bolt - Plug, oil gallery	Exhaust manifold (TYPE 4,5,6,7,8)
01550-1016B-000	Bolt - Plug, oil gallery	Exhaust manifold (TYPE 4,5,6,7,8)
01550-10203-000	Bolt - Bolt, lower	Exhaust manifold (TYPE 4,5,6,7,8)
01550-1020A-000	Bolt - Bolt, bal sprocket	Exhaust manifold (TYPE 4,5,6,7,8)
08316-10083-000	Nut	Exhaust manifold (TYPE 4,5,6,7,8)
08316-1008B-000	NUT	Exhaust manifold (TYPE 4,5,6,7,8)
09103-06168-000	BOLT(6X10)	Exhaust manifold (TYPE 4,5,6,7,8)
09103-06187-000	Bolt (6x20)	Exhaust manifold (TYPE 4,5,6,7,8)
09103-08118-000	BOLT(8X35)	Exhaust manifold (TYPE 4,5,6,7,8)
09103-08368-000	BOLT(8X65)	Exhaust manifold (TYPE 4,5,6,7,8)
09103-10315-000	BOLT(10X30)	Exhaust manifold (TYPE 4,5,6,7,8)
09108-08256-000	BOLT,STUD(8X36)	Exhaust manifold (TYPE 4,5,6,7,8)
09108-08258-000	BOLT,STUD	Exhaust manifold (TYPE 4,5,6,7,8)
09108-08264-000	BOLT,STUD	Exhaust manifold (TYPE 4,5,6,7,8)
09108-08268-000	BOLT,STUD	Exhaust manifold (TYPE 4,5,6,7,8)
09140-08023-000	Nut (ll/x)	Exhaust manifold (TYPE 4,5,6,7,8)
09140-08023-XC0	NUT	Exhaust manifold (TYPE 4,5,6,7,8)
09159-08056-000	NUT	Exhaust manifold (TYPE 4,5,6,7,8)
09159-08130-000	NUT	Exhaust manifold (TYPE 4,5,6,7,8)
09404-06036-000	Clamp(L:80)	Exhaust manifold (TYPE 4,5,6,7,8)
09404-06433-000	CLAMP(L:80) - Clamp (l:80)	Exhaust manifold (TYPE 4,5,6,7,8)
09404-06434-000	CLAMP(L:80 T:1.0)	Exhaust manifold (TYPE 4,5,6,7,8)
09404-06436-000	Clamp(L:80)	Exhaust manifold (TYPE 4,5,6,7,8)
11851-62B00-000	HOOK	Exhaust manifold (TYPE 4,5,6,7,8)
14100-83860-000	CASE SET,CATALYST	Exhaust manifold (TYPE 4,5,6,7,8)
14111-78G61-000	マニホールド,エキゾースト	Exhaust manifold (TYPE 4,5,6,7,8)
14111-78G62-000	MANIFOLD,EXH	Exhaust manifold (TYPE 4,5,6,7,8)
14118-70G50-000	BOLT,EXH MANF 8X25	Exhaust manifold (TYPE 4,5,6,7,8)
14118-73G01-000	BOLT,EXH MANF	Exhaust manifold (TYPE 4,5,6,7,8)
14120-83G50-000	COVER,CTLST OUTLET PIPE	Exhaust manifold (TYPE 4,5,6,7,8)
14131-83G51-000	COVER,EXH MANF	Exhaust manifold (TYPE 4,5,6,7,8)
14137-83G50-000	PIPE,CTLST OUTLET	Exhaust manifold (TYPE 4,5,6,7,8)
14141-83G00-000	ガスケット,エキゾーストマニホールド	Exhaust manifold (TYPE 4,5,6,7,8)
14141-83G01-000	GASKET,EXH MANF	Exhaust manifold (TYPE 4,5,6,7,8)
14170-83G50-000	COVER,CTLST CASE	Exhaust manifold (TYPE 4,5,6,7,8)
14171-83G50-000	カバー,キャタリストケース,リヤ	Exhaust manifold (TYPE 4,5,6,7,8)
14171-83G51-000	COVER,CTLST CASE,RR	Exhaust manifold (TYPE 4,5,6,7,8)
14172-83G50-000	COVER,CTLST CASE	Exhaust manifold (TYPE 4,5,6,7,8)
14173-83G51-000	ブラケット,キャタリストケース,NO.2	Exhaust manifold (TYPE 4,5,6,7,8)
14173-83G52-000	BRACKET,CTLST CASE NO.2	Exhaust manifold (TYPE 4,5,6,7,8)
14180-82G50-000	ブラケット,キャタリストケース,NO.1	Exhaust manifold (TYPE 4,5,6,7,8)
14180-82G5V-000	BRACKET,CTLST CASE NO.1	Exhaust manifold (TYPE 4,5,6,7,8)
14180-82G60-000	ブラケット,キャタリストケース,NO.1	Exhaust manifold (TYPE 4,5,6,7,8)
14180-82G61-000	BRACKET,CTLST CASE NO.1	Exhaust manifold (TYPE 4,5,6,7,8)
14180-82G62-000	BRACKET,CTLST CASE NO.1	Exhaust manifold (TYPE 4,5,6,7,8)
14181-78F00-000	GASKET,CATALYST CASE	Exhaust manifold (TYPE 4,5,6,7,8)
14181-78F50-000	GASKET,EXH MANF	Exhaust manifold (TYPE 4,5,6,7,8)
14182-85551-000	GASKET,EXH PIPE - Gasket, t/c outlet pipe	Exhaust manifold (TYPE 4,5,6,7,8)
18213-83G50-000	センサ,オキシジェン	Exhaust manifold (TYPE 4,5,6,7,8)
18213-83G51-000	SENSOR,OXYGEN	Exhaust manifold (TYPE 4,5,6,7,8)
