Search › Model › RE306
RE306

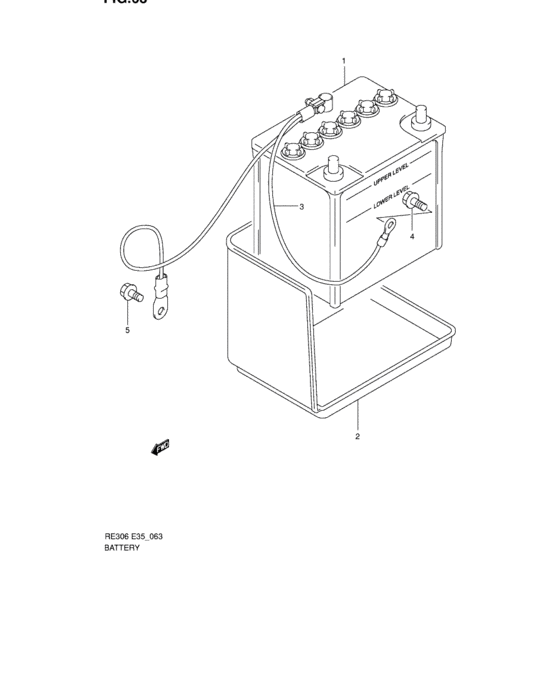

Battery (BATTERY) 12
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-60D10-000 | Battery (28b17l-mf,12v,24ah/5h - Battery (28b17l-mf,12v,24ah/5hr) |
| 1 | 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) |
| 2 | 33660-76G00-000 | Tray, battery |
| 2 | 33660-73H01-000 | TRAY,BATTERY |
| 3 | 33850-76G20-000 | CABLE,BTRY GND |
| 3 | 33850-76G00-000 | CABLE,BTRY GND |
| 3 | 33850-75H00-000 | CABLE,BATTERY GROUND |
| 4 | 09115-06001-000 | Bolt, lh - Bolt (6x16) |
| 4 | 09115-06005-000 | BOLT(6X16) |
| 5 | 01550-08123-000 | Bolt - Plug, oil gallery |
| 5 | 01550-0812B-000 | Bolt - Plug, drain |
| 5 | 01550-0812A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-08123-000 | Bolt - Plug, oil gallery | Battery (BATTERY) |
| 01550-0812A-000 | Bolt | Battery (BATTERY) |
| 01550-0812B-000 | Bolt - Plug, drain | Battery (BATTERY) |
| 09115-06001-000 | Bolt, lh - Bolt (6x16) | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 33610-60D10-000 | Battery (28b17l-mf,12v,24ah/5h - Battery (28b17l-mf,12v,24ah/5hr) | Battery (BATTERY) |
| 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) | Battery (BATTERY) |
| 33660-73H01-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33660-76G00-000 | Tray, battery | Battery (BATTERY) |
| 33850-75H00-000 | CABLE,BATTERY GROUND | Battery (BATTERY) |
| 33850-76G00-000 | CABLE,BTRY GND | Battery (BATTERY) |
| 33850-76G20-000 | CABLE,BTRY GND | Battery (BATTERY) |
