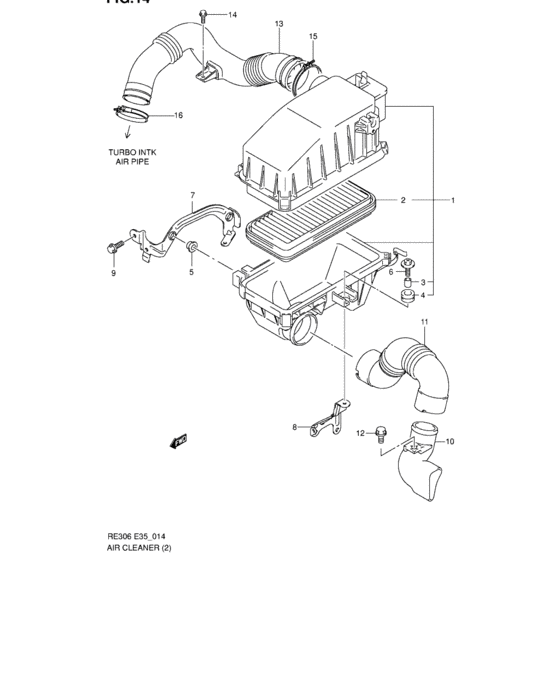

Air cleaner (TYPE 6,7,8)
21
| # | OEM | Part name |
|---|
| 1 |
13700-83H50-000 |
CLEANER ASSY,AIR |
| 2 |
13780-83H50-000 |
ELEMENT,AIR CLEANER |
| 3 |
13812-72G40-000 |
COLLAR |
| 4 |
13813-83000-000 |
GROMMET |
| 4 |
13813-61AT0-000 |
GROMMET SET,AIR CLEANER |
| 5 |
13723-75F00-000 |
GROMMET,AIR CLEANER |
| 6 |
09136-06141-000 |
SCREW(6X25) |
| 7 |
13810-83H50-000 |
BRACKET,AIR CLNR NO.1 |
| 8 |
13820-83H50-000 |
BRACKET,AIR CLNR NO.2 |
| 9 |
01550-06123-000 |
Bolt |
| 9 |
01550-0612B-000 |
Bolt - Bolt, clamp |
| 9 |
01550-0612A-000 |
Bolt |
| 10 |
13870-76G00-000 |
PIPE,AIR CLNR INLET |
| 11 |
13871-83H50-000 |
HOSE,AIR CLNR INLET |
| 12 |
18495-50E00-000 |
Bolt |
| 13 |
13881-83H50-000 |
PIPE,AIR CLNR OUTLET |
| 14 |
01550-06163-000 |
Bolt |
| 14 |
01550-0616B-000 |
Bolt |
| 14 |
01550-0616A-000 |
Bolt |
| 15 |
09402-60208-000 |
CLAMP - Clamp, silencer |
| 16 |
09402-54208-000 |
CLAMP |
| OEM |
Part name |
Category |
| 01550-06123-000 |
Bolt |
Air cleaner (TYPE 6,7,8) |
| 01550-0612A-000 |
Bolt |
Air cleaner (TYPE 6,7,8) |
| 01550-0612B-000 |
Bolt - Bolt, clamp |
Air cleaner (TYPE 6,7,8) |
| 01550-06163-000 |
Bolt |
Air cleaner (TYPE 6,7,8) |
| 01550-0616A-000 |
Bolt |
Air cleaner (TYPE 6,7,8) |
| 01550-0616B-000 |
Bolt |
Air cleaner (TYPE 6,7,8) |
| 09136-06141-000 |
SCREW(6X25) |
Air cleaner (TYPE 6,7,8) |
| 09402-54208-000 |
CLAMP |
Air cleaner (TYPE 6,7,8) |
| 09402-60208-000 |
CLAMP - Clamp, silencer |
Air cleaner (TYPE 6,7,8) |
| 13700-83H50-000 |
CLEANER ASSY,AIR |
Air cleaner (TYPE 6,7,8) |
| 13723-75F00-000 |
GROMMET,AIR CLEANER |
Air cleaner (TYPE 6,7,8) |
| 13780-83H50-000 |
ELEMENT,AIR CLEANER |
Air cleaner (TYPE 6,7,8) |
| 13810-83H50-000 |
BRACKET,AIR CLNR NO.1 |
Air cleaner (TYPE 6,7,8) |
| 13812-72G40-000 |
COLLAR |
Air cleaner (TYPE 6,7,8) |
| 13813-61AT0-000 |
GROMMET SET,AIR CLEANER |
Air cleaner (TYPE 6,7,8) |
| 13813-83000-000 |
GROMMET |
Air cleaner (TYPE 6,7,8) |
| 13820-83H50-000 |
BRACKET,AIR CLNR NO.2 |
Air cleaner (TYPE 6,7,8) |
| 13870-76G00-000 |
PIPE,AIR CLNR INLET |
Air cleaner (TYPE 6,7,8) |
| 13871-83H50-000 |
HOSE,AIR CLNR INLET |
Air cleaner (TYPE 6,7,8) |
| 13881-83H50-000 |
PIPE,AIR CLNR OUTLET |
Air cleaner (TYPE 6,7,8) |
| 18495-50E00-000 |
Bolt |
Air cleaner (TYPE 6,7,8) |
