RD9

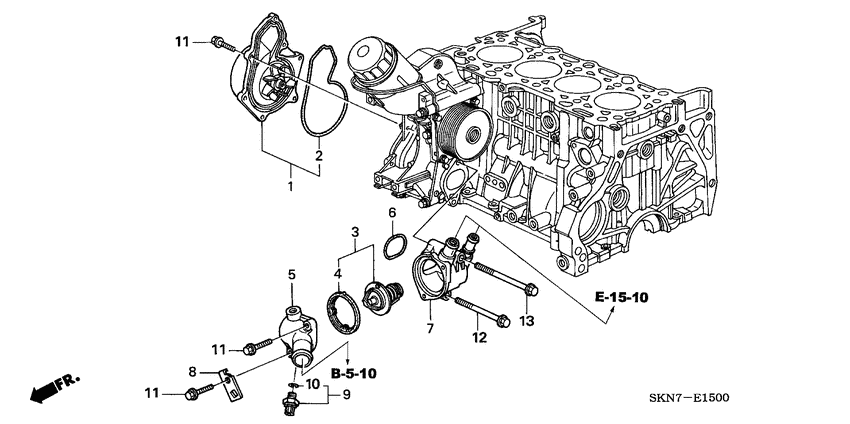

Water pump 11
| # | OEM | Part name |
|---|---|---|
| 1 | 19200-RBD-E01 | Pump comp - WATER |
| 2 | 19222-RBD-E01 | Packing - WATER PUMP |
| 3 | 19301-RBD-305 | Thermostat assy. |
| 4 | 19305-RBD-E00 | Rubber - THERMOSTAT MOUNTING |
| 5 | 19311-RMA-E00 | Cover - THERMOSTAT |
| 6 | 19313-RBD-E00 | Packing - THERMOSTAT CASE |
| 7 | 19320-RBD-E00 | Case comp. - THERMOSTAT |
| 8 | 32744-RBD-E01 | Stay d - HARNESS |
| 9 | 37773-PLZ-E51 | Switch - THERMO (A-100) |
| 10 | 91307-PN4-000 | O-ring - 17.5X1.4 |
| 10 | 91307-PN3-000 | O-ring,17.8x1.4 |
| OEM | Part name | Category |
|---|---|---|
| 19200-RBD-E01 | Pump comp - WATER | Water pump |
| 19222-RBD-E01 | Packing - WATER PUMP | Water pump |
| 19301-RBD-305 | Thermostat assy. | Water pump |
| 19305-RBD-E00 | Rubber - THERMOSTAT MOUNTING | Water pump |
| 19311-RMA-E00 | Cover - THERMOSTAT | Water pump |
| 19313-RBD-E00 | Packing - THERMOSTAT CASE | Water pump |
| 19320-RBD-E00 | Case comp. - THERMOSTAT | Water pump |
| 32744-RBD-E01 | Stay d - HARNESS | Water pump |
| 37773-PLZ-E51 | Switch - THERMO (A-100) | Water pump |
| 91307-PN3-000 | O-ring,17.8x1.4 | Water pump |
| 91307-PN4-000 | O-ring - 17.5X1.4 | Water pump |
