RD9

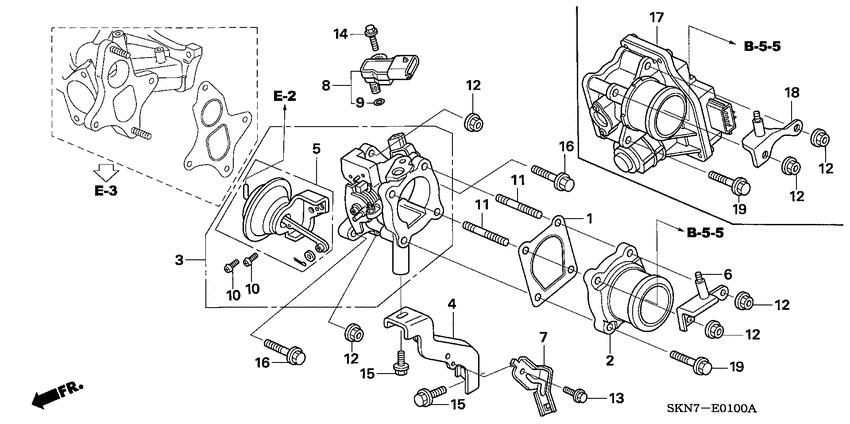

Swirl control valve 10
| # | OEM | Part name |
|---|---|---|
| 1 | 16176-RMA-E01 | Gasket - AIR INTAKE |
| 2 | 17110-RMA-E00 | Passage - AIR INTAKE |
| 3 | 17120-RMA-E01 | Valve assy. - SWIRL CONTROL |
| 4 | 17125-RMA-E00 | Stay comp - SWIRL CONTROL VALVE |
| 5 | 17129-RMA-E00 | Diaphragm assy. |
| 6 | 32125-RMA-E00 | Stay comp - ENGINE COVER |
| 7 | 32742-RBD-E00 | Stay b - HARNESS |
| 8 | 37830-RBD-E01 | Sensor assy, MAP & TA |
| 9 | 37831-PDF-E01 | O-ring |
| 10 | 90018-PR7-A00 | Screw - PAN, 5X12 |
| OEM | Part name | Category |
|---|---|---|
| 16176-RMA-E01 | Gasket - AIR INTAKE | Swirl control valve |
| 17110-RMA-E00 | Passage - AIR INTAKE | Swirl control valve |
| 17120-RMA-E01 | Valve assy. - SWIRL CONTROL | Swirl control valve |
| 17125-RMA-E00 | Stay comp - SWIRL CONTROL VALVE | Swirl control valve |
| 17129-RMA-E00 | Diaphragm assy. | Swirl control valve |
| 32125-RMA-E00 | Stay comp - ENGINE COVER | Swirl control valve |
| 32742-RBD-E00 | Stay b - HARNESS | Swirl control valve |
| 37830-RBD-E01 | Sensor assy, MAP & TA | Swirl control valve |
| 37831-PDF-E01 | O-ring | Swirl control valve |
| 90018-PR7-A00 | Screw - PAN, 5X12 | Swirl control valve |
