Search › Model › RD9
RD9

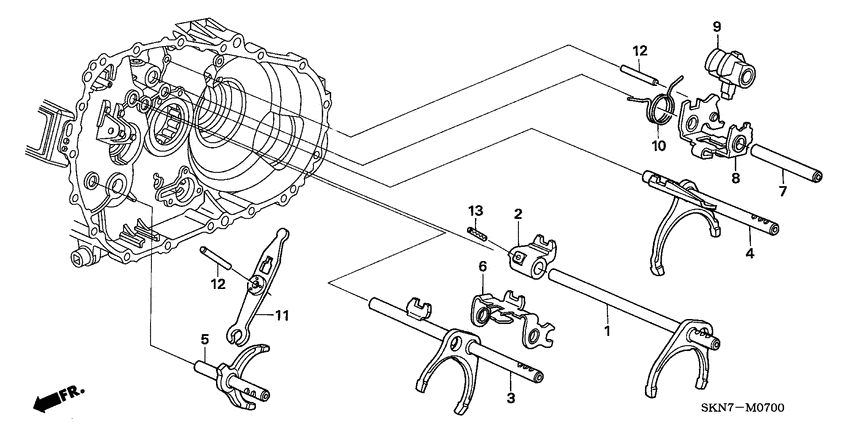

Shift fork 12
| # | OEM | Part name |
|---|---|---|
| 1 | 24200-PYZ-000 | Fork comp - GEARSHIFT (5-6) |
| 2 | 24204-RJV-000 | Piece - SHIFT (5-6) |
| 3 | 24210-PYZ-000 | Fork comp - GEARSHIFT (3-4) |
| 4 | 24220-PYZ-000 | Fork comp - GEARSHIFT (1-2) |
| 5 | 24230-PYZ-000 | Fork comp - REVERSE GEARSHIFT |
| 6 | 24234-PYZ-000 | Piece comp. - REVERSE SHIFT |
| 7 | 24351-PYZ-000 | Shaft - SHIFT PIECE |
| 8 | 24430-PYZ-000 | Interlock comp. - S |
| 9 | 24440-RJV-000 | Piece comp. - GEARSHIFT (6MT) |
| 10 | 24458-PYZ-000 | Spring - SELECT RETURN |
| 11 | 24491-PYZ-000 | Lever - REVERSE SHIFT |
| 12 | 24494-PYZ-000 | Pin - 8X50 |
| OEM | Part name | Category |
|---|---|---|
| 24200-PYZ-000 | Fork comp - GEARSHIFT (5-6) | Shift fork |
| 24204-RJV-000 | Piece - SHIFT (5-6) | Shift fork |
| 24210-PYZ-000 | Fork comp - GEARSHIFT (3-4) | Shift fork |
| 24220-PYZ-000 | Fork comp - GEARSHIFT (1-2) | Shift fork |
| 24230-PYZ-000 | Fork comp - REVERSE GEARSHIFT | Shift fork |
| 24234-PYZ-000 | Piece comp. - REVERSE SHIFT | Shift fork |
| 24351-PYZ-000 | Shaft - SHIFT PIECE | Shift fork |
| 24430-PYZ-000 | Interlock comp. - S | Shift fork |
| 24440-RJV-000 | Piece comp. - GEARSHIFT (6MT) | Shift fork |
| 24458-PYZ-000 | Spring - SELECT RETURN | Shift fork |
| 24491-PYZ-000 | Lever - REVERSE SHIFT | Shift fork |
| 24494-PYZ-000 | Pin - 8X50 | Shift fork |
