RD9

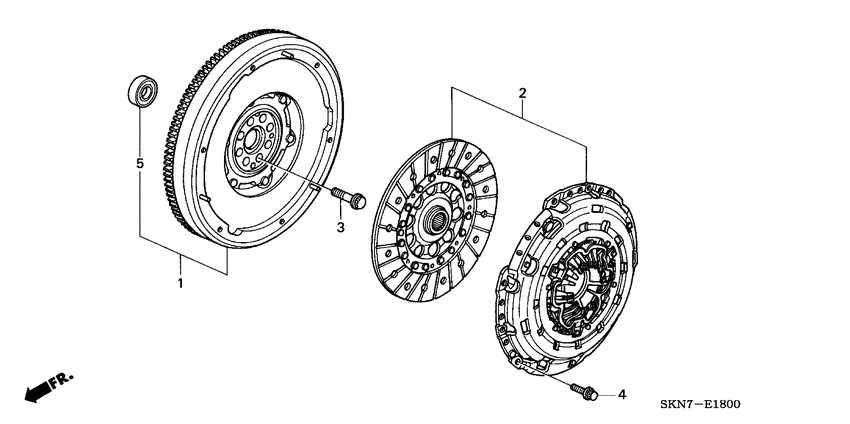

Clutch 5
| # | OEM | Part name |
|---|---|---|
| 1 | 22100-RBD-006 | Flywheel comp. |
| 2 | 22105-PGE-315 | Clutch set |
| 3 | 90011-RBD-000 | Bolt - 12MM |
| 4 | 90034-PR7-F00 | Bolt - TWELVE POINT, 8MM |
| 5 | 91006-PGE-008 | Bearing - PILOT |
| OEM | Part name | Category |
|---|---|---|
| 22100-RBD-006 | Flywheel comp. | Clutch |
| 22105-PGE-315 | Clutch set | Clutch |
| 90011-RBD-000 | Bolt - 12MM | Clutch |
| 90034-PR7-F00 | Bolt - TWELVE POINT, 8MM | Clutch |
| 91006-PGE-008 | Bearing - PILOT | Clutch |
