RD3

Honda CR-V · 2000 · 2,278 parts · 138 categories
RD3 ×

← Back to categories

2,278 items

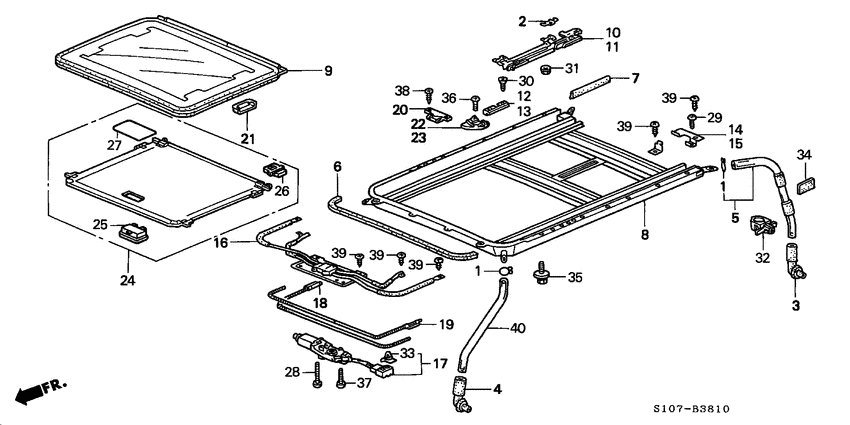

Roof slide components 33
#OEMPart name
1 15771-551-000 Clip - OIL DRAIN TUBE
2 70041-S10-003 Shim - 0.5MM
2 70040-S10-003 Shim - 1.OMM
3 70052-SH3-000 Valve - FR. DRAIN (SUNROOF)
4 70052-S30-000 Valve - FR. DRAIN (SUNROOF)
5 70060-S10-000 Tube - RR. DRAIN VINYL (SUNROOF)
6 70080-S10-003 Seal - SUNROOF FRAME
7 70081-S10-003 Seal - SUNROOF FRAME
8 70100-S10-003 Frame comp - SUNROOF
9 70200-S10-013 Glass assy - ROOF
10 70300-S10-003 Link assy - R.
11 70305-S10-003 Link assy - L.
12 70313-S10-003 Plate set - R.
13 70318-S10-003 Plate set - L.
14 70324-S10-003 Stopper - R.
15 70329-S10-003 Stopper - L.
16 70410-S10-003 Cable assy - DRIVE UNIT
17 70450-S10-003 Motor assy. - SUNROOF
18 70460-S10-003 Cable assy - R.
19 70465-S10-003 Cable assy - L.
20 70532-S10-003 Hinge - BASE PLATE
21 70620-S10-003 Cover - R. STAY
22 70630-S10-003 Cover - R. RAIL
23 70635-S10-003 Cover - L. RAIL
26 83214-S10-003 Plate - SUNSHADE SIDE
27 83218-S10-003 Sheet - SUNSHADE
28 90143-S10-003 Screw - PAN, 5X47
29 90144-S10-003 Screw - TRUSS, 4X6
30 90145-S10-003 Screw - FLAT, 4X5.5
31 90342-S10-003 Nut-washer - 6MM
32 90687-SD2-003 Clip - WIRE HARNESS
33 91555-SM4-003 Clip - COUPLER (RED)
34 91902-SB2-003 Cushion - WIRE HARNESS(50X100)
