Search › Model › RD3
RD3

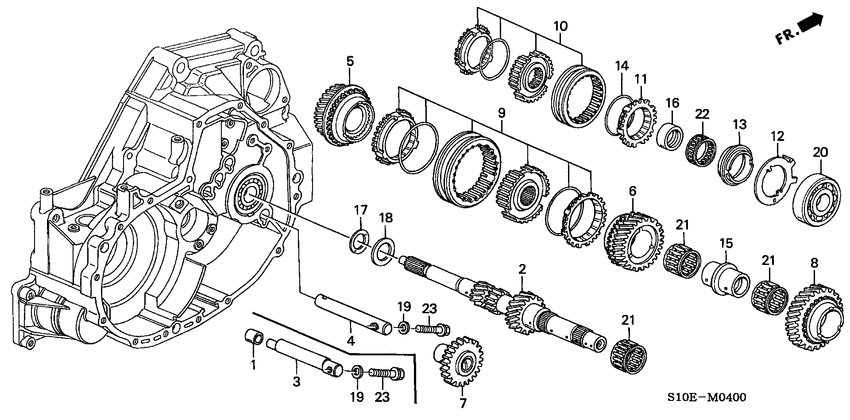

Mainshaft 20
| # | OEM | Part name |
|---|---|---|
| 2 | 23210-PBW-900 | Mainshaft comp. |
| 4 | 23261-PX5-A00 | Shaft - REVERSE IDLE GEAR |
| 5 | 23440-P16-N00 | Gear comp - MAINSHAFT THIRD |
| 6 | 23451-P16-A00 | Gear - MAINSHAFT FOURTH |
| 7 | 23540-PEV-900 | Gear comp - REVERSE IDLE |
| 8 | 23581-P16-S40 | Gear - MAINSHAFT FIFTH |
| 9 | 23623-P21-315 | Sleeve set - SYNCHRONIZER (3-4) |
| 10 | 23626-P16-306 | Sleeve set - SYNCHRONIZER (5) |
| 11 | 23645-PX5-010 | Ring - BLOCKING (50S) |
| 12 | 23646-PX5-000 | Ring - BRAKE STOPPER |
| 13 | 23647-P16-000 | Ring - TAPER CONE |
| 14 | 23652-PB6-000 | Spring - SYNCHRONIZER (50MM) |
| 15 | 23915-P21-000 | Collar - DISTANCE, 31X38X56.5 |
| 16 | 23916-P16-000 | Collar - DISTANCE, 28X37X14.3 |
| 17 | 23927-PG2-A00 | Washer - SPRING, 28MM |
| 18 | 23928-PS1-000 | Washer - 28MM |
| 19 | 90401-PG1-000 | Washer - DRAIN PLUG, 10MM |
| 20 | 91004-PX5-008 | Bearing - BALL, 28X78X20 |
| 21 | 91104-P21-008 | Bearing - NEEDLE, 38X43X26 (NTN) |
| 22 | 91108-P16-008 | Bearing - NEEDLE, 37X42X14 (TOYO) |
| OEM | Part name | Category |
|---|---|---|
| 23210-PBW-900 | Mainshaft comp. | Mainshaft |
| 23261-PX5-A00 | Shaft - REVERSE IDLE GEAR | Mainshaft |
| 23440-P16-N00 | Gear comp - MAINSHAFT THIRD | Mainshaft |
| 23451-P16-A00 | Gear - MAINSHAFT FOURTH | Mainshaft |
| 23540-PEV-900 | Gear comp - REVERSE IDLE | Mainshaft |
| 23581-P16-S40 | Gear - MAINSHAFT FIFTH | Mainshaft |
| 23623-P21-315 | Sleeve set - SYNCHRONIZER (3-4) | Mainshaft |
| 23626-P16-306 | Sleeve set - SYNCHRONIZER (5) | Mainshaft |
| 23645-PX5-010 | Ring - BLOCKING (50S) | Mainshaft |
| 23646-PX5-000 | Ring - BRAKE STOPPER | Mainshaft |
| 23647-P16-000 | Ring - TAPER CONE | Mainshaft |
| 23652-PB6-000 | Spring - SYNCHRONIZER (50MM) | Mainshaft |
| 23915-P21-000 | Collar - DISTANCE, 31X38X56.5 | Mainshaft |
| 23916-P16-000 | Collar - DISTANCE, 28X37X14.3 | Mainshaft |
| 23927-PG2-A00 | Washer - SPRING, 28MM | Mainshaft |
| 23928-PS1-000 | Washer - 28MM | Mainshaft |
| 90401-PG1-000 | Washer - DRAIN PLUG, 10MM | Mainshaft |
| 91004-PX5-008 | Bearing - BALL, 28X78X20 | Mainshaft |
| 91104-P21-008 | Bearing - NEEDLE, 38X43X26 (NTN) | Mainshaft |
| 91108-P16-008 | Bearing - NEEDLE, 37X42X14 (TOYO) | Mainshaft |
