RD1

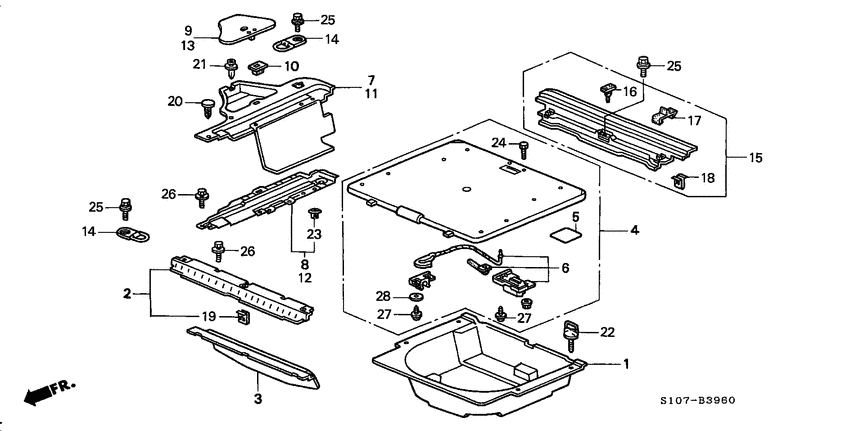

Rear floor box 13
| # | OEM | Part name |
|---|---|---|
| 1 | 83823-S10-000 | Bucket - RR. FLOOR |
| 2 | 83825-S10-000 | Spacer - FR. CARGO |
| 5 | 84524-S10-T00 | Label - TABLE CAUTION |
| 6 | 84525-S10-000 | Lock assy |
| 8 | 84532-S10-000 | Frame - R. FLOOR SIDE |
| 10 | 84534-S10-003 | Latch - FLOOR SIDE LID |
| 12 | 84582-S10-000 | Frame - L. FLOOR SIDE |
| 14 | 84614-S10-003 | Hook assy - TIE DOWN |
| 16 | 84641-S10-000 | Stopper a |
| 17 | 84642-S10-000 | Stopper b |
| 18 | 90610-SR3-003 | Clip - GARNISH (KATO) |
| 19 | 90611-SM4-013 | Clip - PILLAR GARNISH |
| 23 | 91551-S10-003 | Grommet - RING |
| OEM | Part name | Category |
|---|---|---|
| 83823-S10-000 | Bucket - RR. FLOOR | Rear floor box |
| 83825-S10-000 | Spacer - FR. CARGO | Rear floor box |
| 84524-S10-T00 | Label - TABLE CAUTION | Rear floor box |
| 84525-S10-000 | Lock assy | Rear floor box |
| 84532-S10-000 | Frame - R. FLOOR SIDE | Rear floor box |
| 84534-S10-003 | Latch - FLOOR SIDE LID | Rear floor box |
| 84582-S10-000 | Frame - L. FLOOR SIDE | Rear floor box |
| 84614-S10-003 | Hook assy - TIE DOWN | Rear floor box |
| 84641-S10-000 | Stopper a | Rear floor box |
| 84642-S10-000 | Stopper b | Rear floor box |
| 90610-SR3-003 | Clip - GARNISH (KATO) | Rear floor box |
| 90611-SM4-013 | Clip - PILLAR GARNISH | Rear floor box |
| 91551-S10-003 | Grommet - RING | Rear floor box |
