Search › Model › RD1
RD1

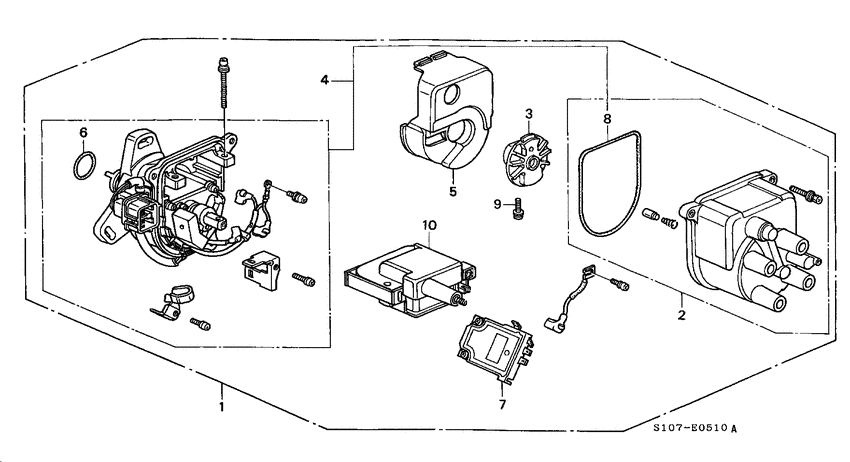

Distributor (TEC) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 30100-P6T-T01 | Distributor assy - TD-74U) (TEC |
| 2 | 30102-P54-006 | Cap assy. |
| 3 | 30103-P08-003 | Distributor Rotor Head Assembly |
| 4 | 30105-P6T-T01 | Housing comp - DISTRIBUTOR (TEC) |
| 5 | 30107-P08-006 | Cover - LEAK |
| 6 | 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) |
| 7 | 30130-P75-006 | Igniter unit - TEC |
| 8 | 30132-PT2-006 | Packing - CAP |
| 9 | 30135-P08-006 | Screw-washer - 5X12 |
| 9 | 30135-P73-004 | Screw-washer - 5X12 |
| 10 | 30510-PT2-006 | Ignition Coil |
| OEM | Part name | Category |
|---|---|---|
| 30100-P6T-T01 | Distributor assy - TD-74U) (TEC | Distributor (TEC) |
| 30102-P54-006 | Cap assy. | Distributor (TEC) |
| 30103-P08-003 | Distributor Rotor Head Assembly | Distributor (TEC) |
| 30105-P6T-T01 | Housing comp - DISTRIBUTOR (TEC) | Distributor (TEC) |
| 30107-P08-006 | Cover - LEAK | Distributor (TEC) |
| 30110-PA1-732 | O-ring - 26.4X3.1 (TEC) | Distributor (TEC) |
| 30130-P75-006 | Igniter unit - TEC | Distributor (TEC) |
| 30132-PT2-006 | Packing - CAP | Distributor (TEC) |
| 30135-P08-006 | Screw-washer - 5X12 | Distributor (TEC) |
| 30135-P73-004 | Screw-washer - 5X12 | Distributor (TEC) |
| 30510-PT2-006 | Ignition Coil | Distributor (TEC) |
