| 32000-35130 |
Converter Assy, Torque |

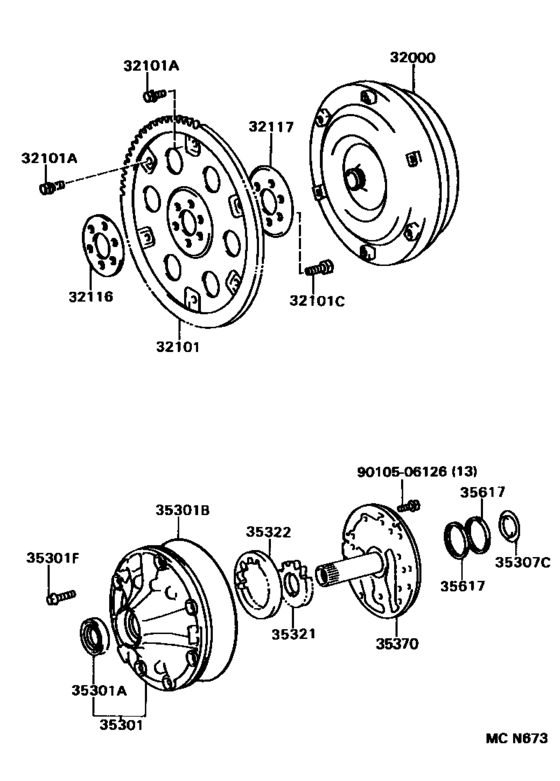

Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 32101-26010 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 32116-26010 |
Spacer, Drive Plate, Front |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 32117-26010 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35301-30040 |
Body Sub-Assy, Front Oil Pump |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35321-12070 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35321-12080 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35321-12090 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35321-12100 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35321-12110 |
Gear, Front Oil Pump Drive |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35322-12060 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35322-12070 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35322-12080 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35322-12090 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35322-12100 |
Gear, Front Oil Pump Driven |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35370-30031 |
Shaft Sub-Assy, Stator |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35617-30020 |
Ring, Clutch Drum Oil Seal |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35789-30020 |
Race, Thrust Bearing (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 35789-30340 |
Race, Thrust Bearing (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90105-06126 |
Bolt (For Stator Shaft) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90105-08091 |
Bolt (For Front Oil Pump Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90105-10276 |
Bolt, Hexagon(For Drive Plate Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90119-09009 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90119-09010 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90301-99033 |
Ring, O (For Front Oil Pump Body) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90311-38020 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
| 90311-38029 |
Seal, Oil (For Front Oil Pump) |
Torque Converter, Front Oil Pump & Chain (Atm) ([08.1992 - ] A340E,A340F (9208- )ATM) |
