Search › Model › RCH23

RCH23

Toyota HIACE · 1998 · 4,932 parts · 230 categories
RCH23 ×

← Back to categories

4,932 items

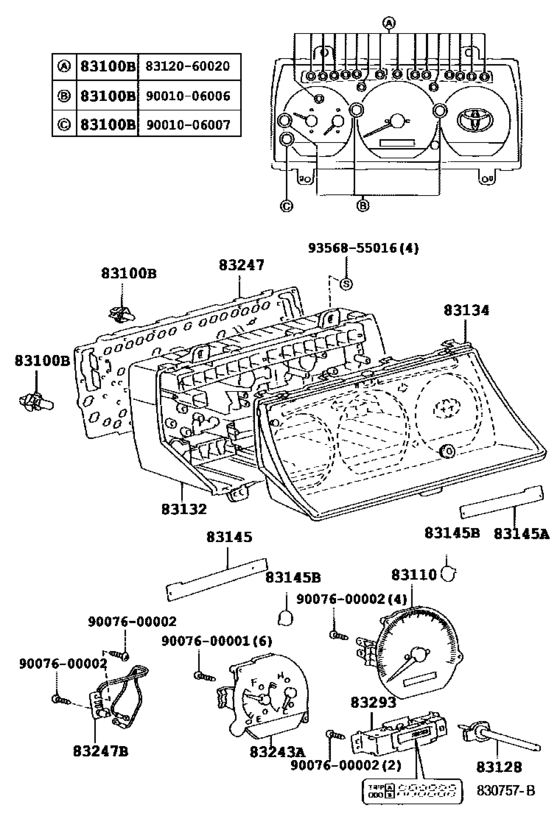

Meter ([08.2001 - 08.2008] W/O(TACHOMETER) (0108-0808)KLH12,22,RCH13,19,23,29..DX,STD..DCR, EFI) 32
#OEMPart name
83100 83120-60020 Bulb, Combination Meter, No.1
83100 90010-06006 Bulb, Combination Meter, No.1
83100 90010-06007 Bulb, Combination Meter, No.1
83110 83220-26180 Speedometer Assy
83110 83220-26250 Speedometer Assy
83110 83220-26370 Speedometer Assy
83110 83220-26380 Speedometer Assy
83128 83128-22480 Knob, Trip Counter
83128 83224-26380 Knob, Trip Counter
83132 83841-26010 Case, Combination Meter
83132 83841-26530 Case, Combination Meter
83132 83841-26600 Case, Combination Meter
83134 83821-26010 Cover, Combination Meter, No.1
83134 83821-26030 Cover, Combination Meter, No.1
83134 83821-26830 Cover, Combination Meter, No.1
83134 83821-26850 Cover, Combination Meter, No.1
83134 83822-26280 Cover, Combination Meter, No.1
83145 83831-26010 Lens, Meter, No.1
83145 83831-2F340 Lens, Meter, No.1
83145 83831-26090 Lens, Meter, No.2
83145 83832-26010 Lens, Meter, No.2
83145 83833-26010 Lens, Meter, No.1
83243 83882-26010 Gauge Sub-Assy, Fuel Receiver
83243 83882-26530 Gauge Sub-Assy, Fuel Receiver
83247 83861-26090 Plate, Meter Circuit
83247 83861-2F020 Plate, Meter Circuit
83247 83861-2F040 Plate, Meter Circuit
83247 83149-2F070 Plate, Meter Circuit, No.2
83293 83293-26110 Computer, Total Counter Module
9007600001 90076-00001 SCREW WITH WASHER
9007600002 90076-00002 SCREW TAPPING
9356855016 93568-55016 Screw
