RCH11

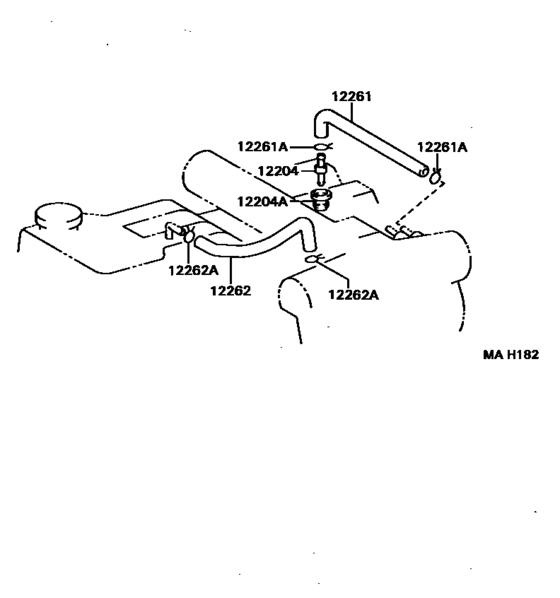

Ventilation Hose ([08.1995 - 04.1998] (9508-9804)3RZFE) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-75010 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12261-75030 | Hose, Ventilation |
| 12261 | 90467-14001 | Clip Or Clamp(For Ventilation Hose) |
| 12261 | 90466-T0026 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-75050 | Hose, Ventilation, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 12204-75010 | Valve Sub-Assy, Ventilation | Ventilation Hose ([08.1995 - 04.1998] (9508-9804)3RZFE) |
| 12261-75030 | Hose, Ventilation | Ventilation Hose ([08.1995 - 04.1998] (9508-9804)3RZFE) |
| 12262-75050 | Hose, Ventilation, No.2 | Ventilation Hose ([08.1995 - 04.1998] (9508-9804)3RZFE) |
| 90466-T0026 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1995 - 04.1998] (9508-9804)3RZFE) |
| 90467-14001 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1995 - 04.1998] (9508-9804)3RZFE) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([08.1995 - 04.1998] (9508-9804)3RZFE) |
