RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

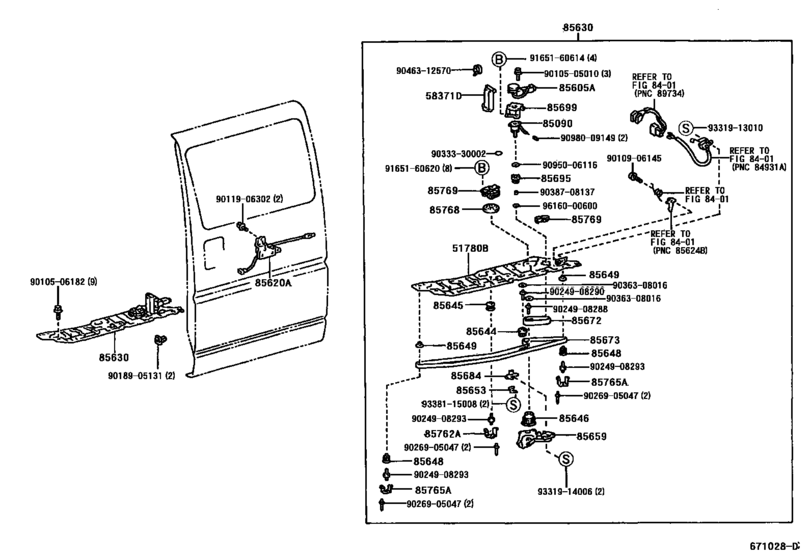

Slide Roller & Rail ([08.1997 - 07.1999] ｵｰﾄｽﾗｲﾄﾞﾄﾞｱ (9708-9907)) 58
#OEMPart name
51780 51780-26010 Step Assy, Lh
51780 51780-26021 Step Assy, Lh
58371 58371-26010 Cover, Rear Floor Step, No.1
58371 58371-26020 Cover, Rear Floor Step, No.1
85090 85090-26010 Clutch Assy, Slide Door Motor
85090 85090-26030 Clutch Assy, Slide Door Motor
85605 85605-26010 Motor Sub-Assy, Slide Door
85605 85605-26030 Motor Sub-Assy, Slide Door
85620 85620-26010 Motor Assy, Slide Door Lock Release, Lh
85620 85620-26030 Motor Assy, Slide Door Lock Release, Lh
85630 85006-26010 Motor Assy, Slide Door
85630 85006-26012 Motor Assy, Slide Door
85630 85630-26020 Motor Assy, Slide Door
85644 85644-26020 Pulley, Belt Idle, No.1
85645 85645-26020 Pulley, Belt Idle, No.2
85646 85646-26010 Pulley, Main
85646 85646-26020 Pulley, Main
85648 85648-26020 Pulley, Drive Belt
85649 85649-26020 Flange, Pulley(For Slide Door Motor)
85653 85653-26030 Plate, Drive Belt
85659 85064-26020 Cover, Belt
85659 85659-26030 Cover, Belt
85672 85672-26010 Belt, Clutch To Main Pulley
85672 85672-26020 Belt, Clutch To Main Pulley
85673 85673-26010 Belt, Slide Door Motor
85673 85673-26030 Belt, Slide Door Motor
85684 85684-26010 Bracket, Power Slide Door Motor Arm
85695 85695-26020 Pulley, Clutch, No.1
85699 85699-26011 Bracket, Slide Door Motor Connector
85699 85699-26020 Bracket, Slide Door Motor Connector
85762 85762-26010 Bracket, Belt Idler, No.2
85765 85765-26010 Bracket, Drive Belt Pulley
85768 85768-26010 Plate, Slide Door Motor Control
85769 85769-26010 Cover, Slide Door Motor Control Plate
85769 85769-26020 Cover, Slide Door Motor Control Plate
9010505010 90105-05010 New Genuine Part
9010506182 90105-06182 New Genuine Part
9010506182 90105-06260 BOLT, WASHER BASED
9010906145 90109-06145 New Genuine Part
9011906302 90119-06302 New Genuine Part
9011906302 91651-60612 BOLT
9018905131 90189-05131 WASHER
9024908288 90249-08288 New Genuine Part
9024908290 90249-08290 New Genuine Part
9024908293 90249-08293 New Genuine Part
9026905047 90269-05047 New Genuine Part
9033330002 90333-30002 Cover, Front Floor Hole
9036308016 90363-08016 New Genuine Part
9038708137 90387-08137 New Genuine Part
9046312570 90463-12570 CLAMP
9095006116 90950-06116 New Genuine Part
9098009149 90980-09149 New Genuine Part
9165160614 91651-60614 Bolt
9165160620 91651-60620 BOLTWWASHER
9331913010 93319-13010 New Genuine Part
9331914006 93319-14006 SCREW WITH WASHER
9338115008 93381-15008 SCREWWWASHER
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
