Search › Model › RCH11

RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

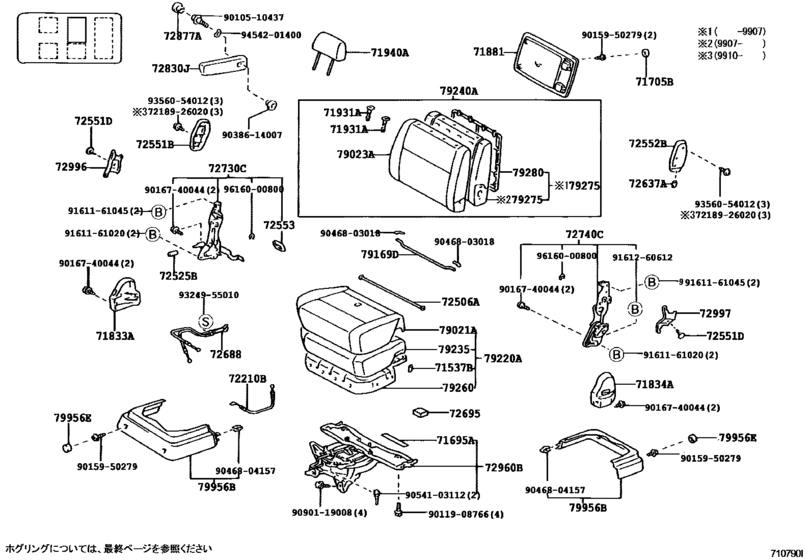

Seat & Seat Track ([08.1997 - ] ﾘﾔ NO.1 ｼ-ﾄ(RH) (9708- )08S) 83
#OEMPart name
71537 71537-26010 Protector, Front Seat Cushion
71695 71695-26010 Protector, Rear Seat, No.1 Rh
71705 90339-10001-B4 Cap(For Front Seat Back Board)
71705 90339-10001-P6 Cap(For Rear Seat Leg Side Cover)
71833 71811-26070-B0 Cover, Reclining Adjuster, Rh
71834 71812-26070-B0 Cover, Reclining Adjuster, Lh
71881 71881-26020-B0 Board, Rear Seat Back, Rh
71881 71881-26020-B3 Board, Rear Seat Back, Rh
71931 71930-28030-B0 Support, Front Seat Headrest
71931 71930-28030-C0 Support, Front Seat Headrest
71931 71931-28030-B0 Support, Front Seat Headrest
71931 71931-28030-C0 Support, Front Seat Headrest (BLACK)
71940 71940-26100-B0 Headrest Assy, Rear Seat
72210 72210-26010 Cable Assy, Seat Track Control, Rh
72506 72506-26020 Rod Sub-Assy, Reclining Connecting, Rh
72525 72525-26030-B0 Handle, Reclining Adjuster Release
72525 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
72551 72551-26060-B0 Cover, Reclining Hinge, Rh
72551 90467-05017-B0 Clip (For Seat Track Cover)
72551 90467-05147-B0 Clip(For Reclining Hinge)
72552 72552-26020-B0 Cover, Reclining Hinge, Lh
72552 72552-26020-B1 Cover, Reclining Hinge, Lh
72552 72552-26050-B0 Cover, Reclining Hinge, Lh
72553 72553-12040 Cover, Reclining Pedal
72637 72637-26040-B0 Handle, Rear Seat Lock
72637 72637-26040-B1 Handle, Rear Seat Lock
72688 72688-26030 Cable, Rear Seat Track & Turn Control
72695 72695-21030 Silencer, Rear Seat Back Lock Control Rod
72730 72730-26050 Adjuster Assy, No.2 Seat Reclining, Rh
72730 72730-26060 Adjuster Assy, No.2 Seat Reclining, Rh
72740 72740-26080 Adjuster Assy, No.2 Seat Reclining, Lh
72740 72740-26170 Adjuster Assy, No.2 Seat Reclining, Lh
72960 72960-26020-B0 Table Assy, Rear Seat Turn, Rh
72960 72960-26020-C0 Table Assy, Rear Seat Turn, Rh
72996 72996-26010-B0 Cover, Rear Seat Back, Rh
72996 72996-26010-B1 Cover, Rear Seat Back, Rh
72997 72997-26010-B0 Cover, Rear Seat Back, Lh
72997 72997-26010-B1 Cover, Rear Seat Back
72997 72997-26020-B0 Cover, Rear Seat Back, Lh
72997 72997-26020-B1 Cover, Rear Seat Back, Lh
79021 79021-26140-B1 Cover Sub-Assy, No.2 Seat Cushion
79021 79021-26210-B2 Cover Sub-Assy, No.2 Seat Cushion
79021 79021-26220-B1 Cover Sub-Assy, No.2 Seat Cushion
79023 79023-26070-B0 Cover Sub-Assy, No.2 Seat Back
79023 79023-26140-B0 Cover Sub-Assy, No.2 Seat Back
79023 79023-26160-B0 Cover Sub-Assy, No.2 Seat Back
79169 79169-26050 Rod, Rear Seat Hinge Connector
79220 79220-26150-B0 Cushion Assy, No.2 Seat
79220 79220-26220-B0 Cushion Assy, No.2 Seat
79220 79220-26230-B0 Cushion Assy, No.2 Seat
79235 79235-26010 Pad, No.1 Seat Cushion, Rh
79240 79240-26120-B0 Back Assy, No.2 Seat
79240 79240-26190-B0 Back Assy, No.2 Seat
79240 79240-26200-B0 Back Assy, No.2 Seat
79260 79211-26040 Frame Sub-Assy, Rear Seat Cushion, Rh
79275 79027-26020 Pad, No.1 Seat Back, Rh
79275 79275-26020 Pad, No.1 Seat Back
79280 79280-26050 Spring Assy, No.1 Seat Back
79280 79280-26070 Spring Assy, No.1 Seat Back
79280 79280-26060 Spring Assy, No.2 Seat Back
79956 79956-26060-B0 Cover, Rear Seat Leg Side, Rh
79956 79956-26070-B0 Cover, Rear Seat Leg Side, Rh
79956 79956-26070-B1 Cover, Rear Seat Leg Side, Rh
7218926020 72189-26020 New Genuine Part
9010510437 90105-10437 New Genuine Part
9011908766 90119-08766 BOLT WWASHER
9015950279 90159-50279 New Genuine Part
9016740044 90167-40044 BOLT
9038614007 90386-14007 Bush, Front Seat Armrest, No.1
9046803018 90468-03018 New Genuine Part
9046804157 90468-04157 Clip (Metal)
9054103112 90541-03112 Cushion(For Front Door Outside Handle)
9090119008 90901-19008 New Genuine Part
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9161161045 91611-61045 Bolt, Hexagon(For Idle Gear Bolt Lock)
9161161045 91612-61045 Bolt(For Transaxle & Engine Setting)
9161260612 91612-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161260612 91611-G0612 Bolt
9324955010 93249-55010 New Genuine Part
9356054012 93560-54012 Screw
9454201400 94542-01400 Spacer, Center Seat Hinge
9616000800 96160-00800 Ring, E(For Counter Weight)
