RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

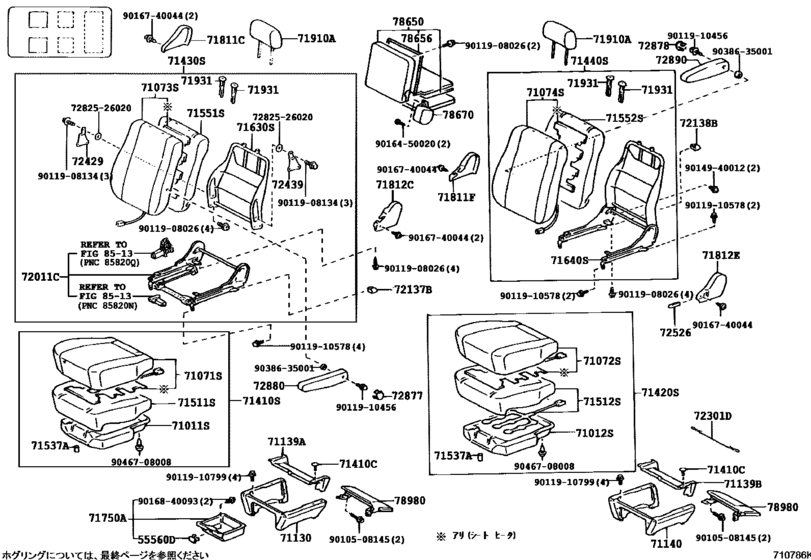

Seat & Seat Track ([08.1997 - ] ﾌﾛﾝﾄ ｼ-ﾄ(ﾊﾟﾜ- ｼ-ﾄ) (9708- )KCH1#,RCH11,VCH1#) 100
#OEMPart name
55560 55560-95J00-B0 Lock Assy, Glove Compartment Door
55560 55560-26010-B0 Lock Assy, Glove Compartment Door
71011 71011-26040 Frame Sub-Assy, Front Seat Cushion, Rh
71071 71071-26220-B0 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26400-B2 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-26450-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71072 71072-26210-B0 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26400-B2 Cover, Front Seat Cushion, Lh(For Separate Type)
71072 71072-26430-B1 Cover, Front Seat Cushion, Lh(For Separate Type)
71073 71073-26310-B1 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26510-B0 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-26550-B1 Cover, Front Seat Back, Rh(For Separate Type)
71074 71074-26230-B1 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26340-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26480-B0 Cover, Front Seat Back, Lh(For Separate Type)
71074 71074-26520-B1 Cover, Front Seat Back, Lh(For Separate Type)
71130 71130-26020-B0 Leg Assy, Front Seat, Rh
71130 71130-26021-B0 Leg Assy, Front Seat, Rh
71130 71130-26030-B0 Leg Assy, Front Seat, Rh
71139 71139-26010-B0 Cover, Front Seat Leg, No.1
71139 71139-26050-B0 Cover, Front Seat Leg, No.1
71139 71139-26050-B1 Cover, Front Seat Leg
71139 71139-26020-B0 Cover, Front Seat Leg, No.2
71139 71139-26040-B0 Cover, Front Seat Leg, No.2
71139 71139-26040-B1 Cover, Front Seat Leg
71140 71140-26020-B0 Leg Assy, Front Seat, Lh
71140 71140-26030-B0 Leg Assy, Front Seat, Lh
71140 71140-26031-B1 Leg Assy, Front Seat, Lh
71410 90467-06020-B0 Clip, No.2(For Parking Brake)
71410 71410-26230-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26410-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71410 71410-26460-B0 Cushion Assy, Front Seat, Rh(For Separate Type)
71420 71420-26200-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26400-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71420 71420-26430-B0 Cushion Assy, Front Seat, Lh (For Separate Type)
71430 71430-26450-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-26740-B0 Back Assy, Front Seat, Rh(For Separate Type)
71430 71430-26750-B1 Back Assy, Front Seat, Rh(For Separate Type)
71440 71440-26430-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-26480-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-26650-B0 Back Assy, Front Seat, Lh(For Separate Type)
71440 71440-26660-B1 Back Assy, Front Seat, Lh(For Separate Type)
71511 71511-26050 Pad, Front Seat Cushion, Rh(For Separate Type)
71537 71537-26010 Protector, Front Seat Cushion
71537 71695-26050 Protector, Front Seat Cushion
71551 71551-26080 Pad, Front Seat Back, Rh(For Separate Type)
71551 71551-26130 Pad, Front Seat Back, Rh(For Separate Type)
71552 71552-26040 Pad, Front Seat Back, Lh(For Separate Type)
71630 71630-26050-C0 Spring Assy, Front Seat Back, Rh(For Separate Type)
71630 71630-26090-C0 Spring Assy, Front Seat Back, Rh(For Separate Type)
71640 71640-26020-C0 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71640-26030-C0 Spring Assy, Front Seat Back, Lh(For Separate Type)
71640 71640-26080-C0 Spring Assy, Front Seat Back, Lh(For Separate Type)
71750 71750-26010-B0 Tray Assy, Front Seat Under
71750 71750-26010-C2 Tray Assy, Front Seat Under
71811 71811-26020-B0 Cover, Reclining Adjuster, Rh
71811 71811-26030-B0 Cover, Reclining Adjuster, Rh
71812 71812-26020-B0 Cover, Reclining Adjuster, Lh
71812 71812-26010-B0 Cover, Reclining Adjuster, Lh
71910 71910-26090-B0 Headrest Assy, Front Seat
71931 71930-28030-B0 Support, Front Seat Headrest
71931 71930-28030-C0 Support, Front Seat Headrest
71931 71931-28030-B0 Support, Front Seat Headrest
71931 71931-28030-C0 Support, Front Seat Headrest (BLACK)
72137 72137-26030-B0 Cover, Seat Track, Rh
72137 72137-26030-C0 Cover, Seat Track, Rh
72137 72137-26070 Cover, Seat Track, Rh
72301 72301-26010 Wire Sub-Assy, Seat Track Equalizing, Rh
72526 72525-26050-B0 Handle, Reclining Adjuster Release, Rh
72526 72525-95J01-B0 Handle, Reclining Adjuster Release, Rh
72877 72877-26030-B1 Cover, Seat Armrest, Rh
72877 72877-26040-B0 Cover, Seat Armrest, Rh
72878 72878-26030-B1 Cover, Seat Armrest, Lh
72878 72878-26030-B2 Cover, Seat Armrest, Lh
72878 72878-26040-B1 Cover, Seat Armrest, Lh
72878 72878-26040-B0 Cover, Seat Armrest, Lh
72880 72880-26020-B0 Armrest Assy, Seat, C Rh
72880 72880-26020-B2 Armrest Assy, Seat, C Rh
72880 72880-26090-B3 Armrest Assy, Seat, C Rh
72890 72890-26020-B0 Armrest Assy, Seat, C Lh
72890 72890-26020-B2 Armrest Assy, Seat, C Lh
72890 72890-26070-B3 Armrest Assy, Seat, C Lh
78980 78980-26010-B0 Footrest Assy, Rear Seat
78980 78980-26010-B1 Footrest Assy, Rear Seat
7282526020 72825-26020 Clutch, Protector Main, Rh
9010508145 90105-08145 BOLT
9011908026 90119-08026 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908026 90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel)
9011908134 90119-08134 BOLT
9011910456 90119-10456 New Genuine Part
9011910456 90119-10327 New Genuine Part
9011910578 90119-10578 Bolt, Hexagon(For Rear Caliper)
9011910799 90119-10799 New Genuine Part
9014940012 90149-40012 SCREW
9016450020 90164-50020 New Genuine Part
9016740044 90167-40044 BOLT
9016840093 90168-40093 SCREW TAPPING
9038635001 90386-35001 Ornament, Front Seat Bracket, Rh
9038635001 71847-35010 Ornament, Front Seat Bracket, Rh
9046708008 90467-08008 Clip, Step Plate Cover
