RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories

← Back to categories

6,006 items

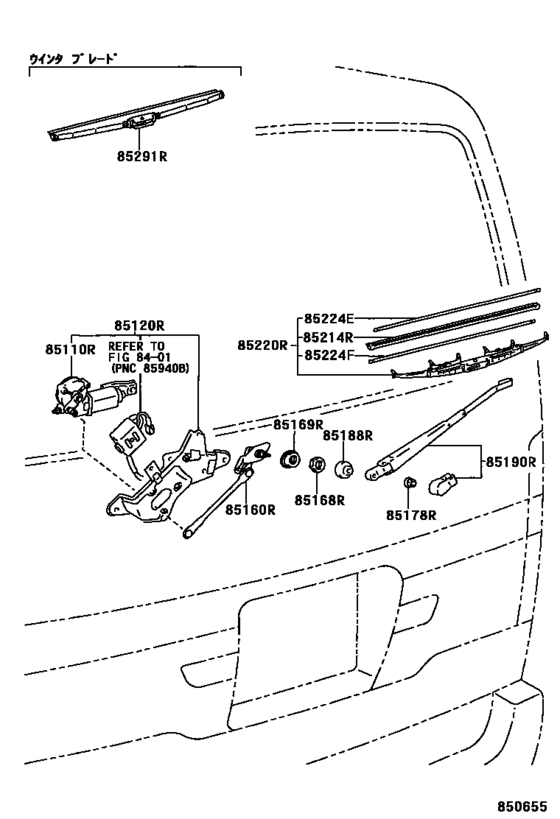

Rear Wiper ([08.1995 - 01.2005] (9508-0501)) 17

#	OEM	Part name
85120	85080-26020	Motor And Bracket Assy, Rear Wiper
85160	85170-26030	Link Assy, Rear Wiper
85168	85168-95700	Nut, Windshield Wiper Link Pivot
85169	85134-26050	Washer, Rear Wiper Link Pivot, No.1
85178	90179-06158	Nut, Rear Wiper Link Pivot, No.2
85188	85178-95J00	Cap, Rear Wiper Pivot, No.1
85190	85241-26010	Arm Assy, Rear Wiper
85214	85214-20420	Rubber, Rear Wiper
85214	85214-22360	Rubber, Rear Wiper
85214	85214-20330	Rubber, Wiper, Rh
85220	85242-26010	Blade Assy, Rear Wiper
85220	85242-22040	Blade Assy, Rear Wiper
85220	85242-26030	Blade Assy, Rear Wiper
85224	85224-1G010	Plate, Rear Wiper Rubber Backing, No.1
85224	85224-60050	Plate, Wiper Rubber Backing, No.1
85291	85291-60020	Blade Assy, Windshield Wiper
85291	85291-33050	Blade Assy, Windshield Wiper

OEM	Part name	Category
85080-26020	Motor And Bracket Assy, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85134-26050	Washer, Rear Wiper Link Pivot, No.1	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85168-95700	Nut, Windshield Wiper Link Pivot	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85170-26030	Link Assy, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85178-95J00	Cap, Rear Wiper Pivot, No.1	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85214-20330	Rubber, Wiper, Rh	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85214-20420	Rubber, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85214-22360	Rubber, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85224-1G010	Plate, Rear Wiper Rubber Backing, No.1	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85224-60050	Plate, Wiper Rubber Backing, No.1	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85241-26010	Arm Assy, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85242-22040	Blade Assy, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85242-26010	Blade Assy, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85242-26030	Blade Assy, Rear Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85291-33050	Blade Assy, Windshield Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
85291-60020	Blade Assy, Windshield Wiper	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Rear Wiper ([08.1995 - 01.2005] (9508-0501))
