Search › Model › RCH11

RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

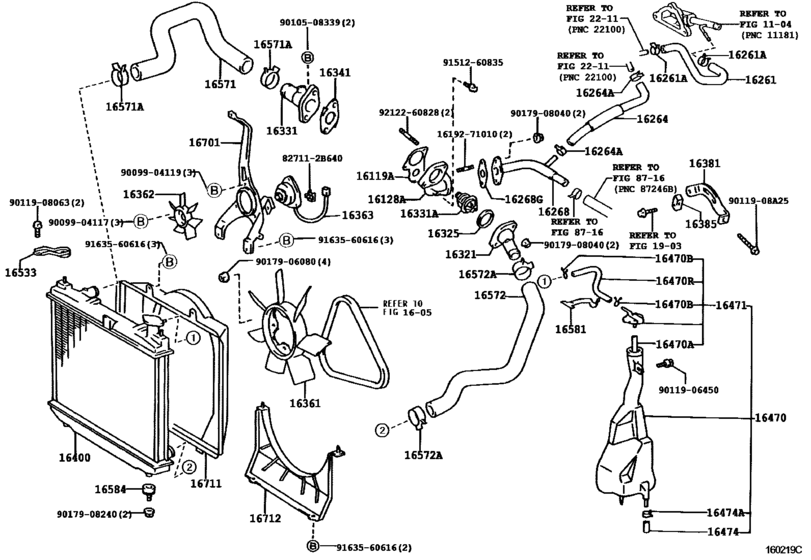

Radiator & Water Outlet ([08.1996 - 04.1998] (9608-9804)3RZFE) 66
#OEMPart name
16119 16119-75020 Gasket, Thermostat Guide
16128 16128-75020 Plate, Water Pump Thermostat Guide
16261 16261-75040 Hose, Water By-Pass
16261 96135-41300 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 96135-51300 Clamp, Hose
16264 16264-75040 Hose, Water By-Pass, No.2
16268 16268-75060 Pipe, Water By-Pass, No.1
16268 17175-75010 Gasket(For Water By-Pass Pipe)
16321 16321-0W010 Inlet, Water
16325 16325-62010 Gasket, Water Inlet Housing, No.1
16325 16325-76010 Gasket, Water Inlet Housing, No.1
16331 16331-0W010 Outlet, Water
16331 90916-03101 Thermostat
16331 90916-03120 Thermostat
16341 16341-75020 Gasket, Water Outlet
16361 16361-75020 Fan
16361 16361-75021 Fan
16362 16361-46070 Fan
16363 16363-46020 Motor, Cooling Fan
16381 16381-75030 Bar, Fan Belt Adjusting
16381 16381-75040 Bar, Fan Belt Adjusting
16381 16381-75050 Bar, Fan Belt Adjusting
16385 16385-75030 Slider, Fan Belt Adjusting
16400 16400-75150 Radiator Assy
16400 16400-75221 Radiator Assy
16400 16400-75220 Radiator Assy
16470 16470-54290 Tank Assy, Radiator Reserve
16470 90445-12078 Hose(For Radiator Breather)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16472-54290 Hose, No.2(For Radiator Reserve Tank)
16470 16477-54290 Hose, No.2(For Radiator Reserve Tank)
16471 16405-54260 Cap Sub-Assy, Reserve Tank
16471 16405-54261 Cap Sub-Assy, Reserve Tank
16474 16474-54290 Cap(For Radiator Reserve Tank Drain)
16474 90467-09173 Clamp Or Clip(For Radiator Reserve Tank Drain Cap)
16533 16505-54050 Support, Radiator, Upper
16571 16571-75070 Hose, Radiator, Inlet
16571 16571-75080 Hose, Radiator, Inlet
16571 90467-37001 Clip(For Water Inlet Hose)
16571 90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)
16572 16572-75070 Hose, Radiator, Outlet
16581 16581-54060 Clamp, Hose(For Water Hose)
16584 16584-54010 Insulator, Radiator Mounting
16701 16711-75060 Shroud Sub-Assy, Fan
16711 16711-75050 Shroud, Fan
16711 16711-75070 Shroud, Fan
16712 16712-75030 Shroud, Fan, No.2
16712 16712-75040 Shroud, Fan, No.2
827112 82711-2B640 Wire, Fuse To Fuse(for Combustion Heater)
9011908 90119-08A25 BOLT WWASHER
1619271010 16192-71010 BOLT
9009904117 90099-04117 Bolt, Radiator Side Support Plate
9009904119 90099-04119 BOLT WASHER HEAD
9010508339 90105-08339 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9010508339 91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover)
9011906450 90119-06450 New Genuine Part
9011906450 90119-06442 BOLT WWASHER
9011908063 90119-08063 BOLT
9017906080 90179-06080 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908240 90179-08240 New Genuine Part
9151260835 91512-60835 Bolt (for Pawl Stopper Plate)
9151260835 90105-08200 Bolt(For Cylinder Head Set Sub)
9163560616 91635-60616 BOLT WWASHER
9163560616 91631-J0612 BRACKET
9212260828 92122-60828 New Genuine Part
