RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

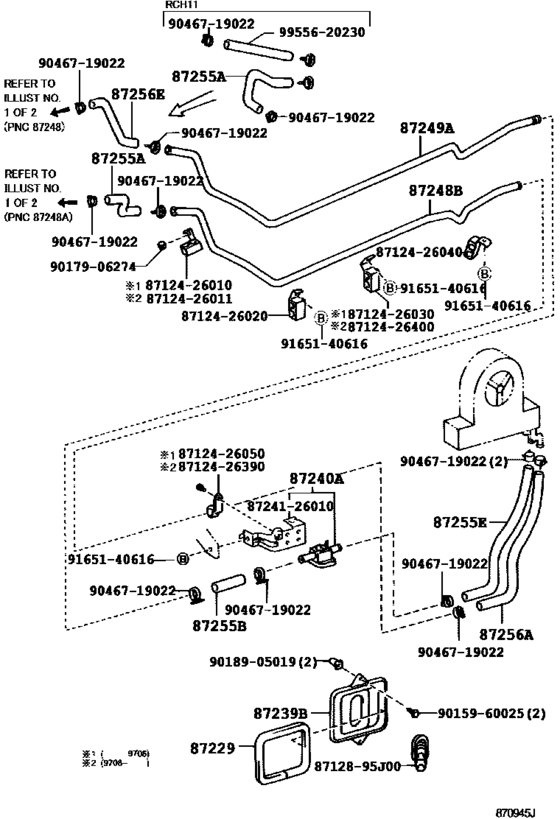

Heating & Air Conditioning - Water Piping ([08.1995 - 05.2002] ﾘﾔ (9508-0205)KCH1#,RCH11..4D) 34
#OEMPart name
87229 87229-26010 Packing, Heater Inlet Hole Cover
87229 62491-26010 Packing, Center Pillar Servise Hole Cover, Upper
87239 87239-26030 Cover, Heater Inlet Hole
87240 87240-26070 Valve Assy, Rear Heater Water
87248 87248-26050 Pipe, Heater Water Inlet, B
87248 87248-26250 Pipe, Heater Water Inlet, B
87249 87248-26060 Pipe, Heater Water Outlet, A
87249 87248-26260 Pipe, Heater Water Outlet, A
87255 87245-26480 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-2F330 Hose, Rear Heater Water Inlet, A(From Engine)
87255 87245-26750 Hose, Rear Heater Water Inlet, B
87255 99556-20200 Hose, Water(For Lpg Regulator Outlet)
87255 87245-26610 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87255 87245-26611 Hose, Rear Heater Water Inlet, E(To Heater Unit)
87256 87245-2F340 Hose, Rear Heater Water Outlet, E (To Engine)
87256 99556-20300 Hose, Water(For Lpg Regulator Inlet)
8712895 87128-95J00 Grommet, Heater
8712426010 87124-26010 Clamp, Heater
8712426010 87124-26011 Clamp, Heater
8712426020 87124-26020 Clamp, Heater
8712426030 87124-26030 Clamp, Heater
8712426040 87124-26040 Clamp, Heater
8712426050 87124-26050 Clamp, Heater
8712426390 87124-26390 Clamp, Heater
8712426400 87124-26400 Clamp, Heater
8724126010 87241-26010 Controller, Water Valve
9015960025 90159-60025 SCREW W-WASHER
9017906274 90179-06274 Nut
9018905019 90189-05019 New Genuine Part
9046719022 90467-19022 Clip(For Ventilation Hose No.2)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9955620230 99556-20230 Hose, Rear Heater Water Outlet, E (To Engine)
