RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

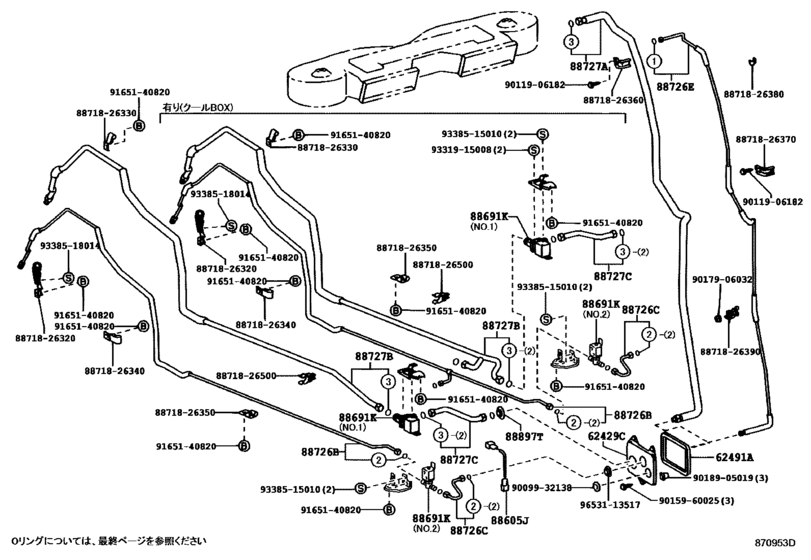

Heating & Air Conditioning - Cooler Piping ([08.1995 - 05.1996] ﾘﾔ (9508-9605)KCH10,16,RCH11) 44
#OEMPart name
62429 62429-26020 Cover, Center Pillar Service Hole
62491 62491-26010 Packing, Center Pillar Servise Hole Cover, Upper
88605 88605-2F250 Harness Sub-Assy, Air Conditioner Wiring
88691 88690-26140 Valve Assy, Magnet
88691 88690-26190 Valve Assy, Magnet
88691 88690-26240 Valve Assy, Magnet
88691 88690-26241 Valve Assy, Magnet
88726 88716-26600 Pipe, Cooler Refrigerant Liquid, B
88726 88716-26610 Pipe, Cooler Refrigerant Liquid, B
88726 88716-2F180 Pipe, Cooler Refrigerant Liquid, A
88726 88716-2F190 Pipe, Cooler Refrigerant Liquid, A
88726 88716-2F120 Pipe, Cooler Refrigerant Liquid, C
88726 88715-26230 Pipe, Cooler Refrigerant Liquid, E
88727 88717-26460 Pipe, Cooler Refrigerant Suction, A
88727 88717-26430 Pipe, Cooler Refrigerant Suction, B
88727 88717-26440 Pipe, Cooler Refrigerant Suction, B
88727 88717-26740 Pipe, Cooler Refrigerant Suction, B
88727 88717-26760 Pipe, Cooler Refrigerant Suction, B
88727 88717-26830 Pipe, Cooler Refrigerant Suction, B
88727 88717-26450 Pipe, Cooler Refrigerant Suction, C
88727 88717-26750 Pipe, Cooler Refrigerant Suction, B
88897 88897-26030 Grommet, Cooler
8871826320 88718-26320 Pipe, Cooler Refrigerant Suction, No.2
8871826330 88718-26330 Pipe, Cooler Refrigerant Suction, No.2
8871826340 88718-26340 Pipe, Cooler Refrigerant Suction, No.2
8871826350 88718-26350 Pipe, Cooler Refrigerant Suction, No.2
8871826360 88718-26360 Pipe, Cooler Refrigerant Suction, No.2
8871826360 88718-26361 Pipe, Cooler Refrigerant Suction, No.2
8871826370 88718-26370 Pipe, Cooler Refrigerant Suction, No.2
8871826370 88718-26371 Pipe, Cooler Refrigerant Suction, No.2
8871826380 88718-26380 Pipe, Cooler Refrigerant Suction, No.2
8871826390 88718-26390 Pipe, Cooler Refrigerant Suction, No.2
8871826500 88718-26500 Pipe, Cooler Refrigerant Suction, No.2
9009932138 90099-32138 New Genuine Part
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9015960025 90159-60025 SCREW W-WASHER
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9018905019 90189-05019 New Genuine Part
9165140820 91651-40820 Bolt
9331915008 93319-15008 SCREW
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9338518014 93385-18014 New Genuine Part
9653113517 96531-13517 Grommet, Heater Hose
