RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

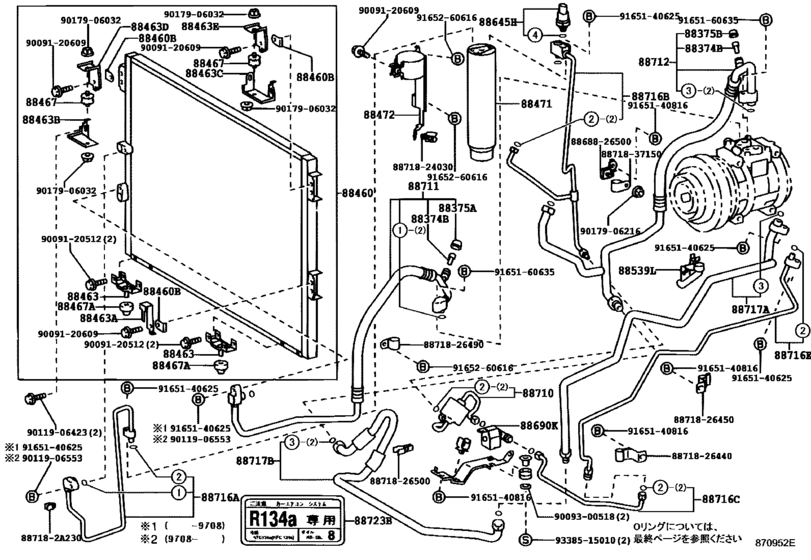

Heating & Air Conditioning - Cooler Piping ([05.1996 - 04.1998] ﾌﾛﾝﾄ,ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ) (9605-9804)RCH11) 69
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88460-26230 Condenser Assy, Cooler
88460 88460-26450 Condenser Assy, Cooler
88460 88463-35120 Bracket, Cooler Condenser, No.1
88460 88688-26470 Bracket, Cooler Condenser, No.1
88463 88463-26100 Bracket, Cooler Condenser, No.1
88463 88463-26110 Bracket, Cooler Condenser, No.2
88463 88463-26160 Bracket, Cooler Condenser, No.3
88463 88463-26170 Bracket, Cooler Condenser, No.4
88463 88463-26180 Bracket, Cooler Condenser, No.5
88467 88467-95704 Cushion, Cooler Condenser, No.1
88467 88467-95D01 Cushion, Cooler Condenser, No.1
88471 88471-28100 Tank, Receiver Air Conditioner
88472 88472-26100 Bracket, Receiver Tank, No.1
88539 88539-26300 Hose, Drain Cooler
88539 88539-26301 Hose, Drain Cooler
88539 88539-26310 Hose, Drain Cooler
88645 88645-26020 Switch, Pressure No.1
88645 88645-48020 Switch, Pressure No.1
88645 88645-34010 Switch, Pressure
88645 88645-04040 Switch, Pressure
88690 88690-26150 Valve Assy, Magnet
88710 88710-26530 Tube Assy, Air Conditioner
88711 88711-26730 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-26732 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-26620 Hose, Cooler Refrigerant Suction, No.1
88712 88712-26621 Hose, Cooler Refrigerant Suction, No.1
88716 88716-26670 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2F240 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2F241 Pipe, Cooler Refrigerant Liquid, A
88716 88716-2F030 Pipe, Cooler Refrigerant Liquid, B
88716 88716-2F250 Pipe, Cooler Refrigerant Liquid, B
88716 88716-26680 Pipe, Cooler Refrigerant Liquid, C
88716 88716-2F160 Pipe, Cooler Refrigerant Liquid, C
88716 88716-2F170 Pipe, Cooler Refrigerant Liquid, C
88716 88716-26690 Pipe, Cooler Refrigerant Liquid, E
88716 88716-26710 Pipe, Cooler Refrigerant Liquid, E
88717 88717-26500 Pipe, Cooler Refrigerant Suction, A
88717 88717-26501 Pipe, Cooler Refrigerant Suction, A
88717 88717-26490 Pipe, Cooler Refrigerant Suction, B
88717 88717-26730 Pipe, Cooler Refrigerant Suction, B
88717 88717-26770 Pipe, Cooler Refrigerant Suction, B
88717 88717-26731 Pipe, Cooler Refrigerant Suction, B
88723 88723-20030 Plate, Caution, No.1
88723 88733-30040 Label, Cooler Service Caution
887182 88718-2A230 Clamp(For Cooler Refrigerant Pipe), No.3
8868826500 88688-26500 Bracket, Cooler Diaphragm
8871824030 88718-24030 Clamp(For Cooler Refrigerant Pipe), No.2
8871826440 88718-26440 Pipe, Cooler Refrigerant Suction, No.2
8871826450 88718-26450 Pipe, Cooler Refrigerant Suction, No.2
8871826490 88718-26490 Pipe, Cooler Refrigerant Suction, No.2
8871826500 88718-26500 Pipe, Cooler Refrigerant Suction, No.2
8871837150 88718-37150 Pipe, Cooler Refrigerant Suction, No.2
9009120512 90091-20512 BOLT WWASHER
9009120609 90091-20609 BOLT
9009300518 90093-00518 New Genuine Part
9011906423 90119-06423 BOLT WWASHER
9011906553 90119-06553 New Genuine Part
9011906553 91651-F0625 BOLT WWASHER
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9017906216 90179-06216 Direct
9165140625 91651-40625 New Genuine Part
9165140816 91651-40816 BOLT
9165160635 91651-60635 BOLT
9165260616 91652-60616 New Genuine Part
9338515010 93385-15010 Screw(For Steering Tilt Lever)
