Search › Model › RCH11

RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories

6,006 items

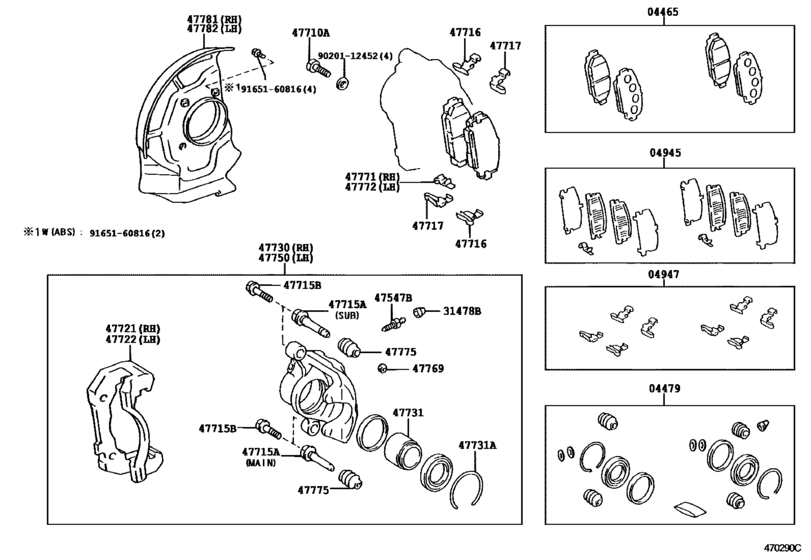

Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22) 60

#	OEM	Part name
4465	04465-26300	Pad Kit, Disc Brake, Front
4465	04465-26370	Pad Kit, Disc Brake, Front
4479	04479-26060	Cylinder Kit, Disc Brake, Front
4479	04478-26030	Cylinder Kit, Disc Brake, Front
4945	04945-26150	Shim Kit, Anti Squeal, Front
4945	04945-26151	Shim Kit, Anti Squeal, Front
4947	04947-26040	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47710	90101-12132	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-50010	Pin, Disc Brake Cylinder Slide
47715	47715-50030	Pin, Disc Brake Cylinder Slide
47715	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47716	47716-26050	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-26020	Plate, Pad Support, No.2(For Front Disc Brake)
47721	47721-26100	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26H00	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26H10	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26H20	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26H30	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26H40	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26101	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26102	Mounting, Front Disc Brake Cylinder, Rh
47721	47721-26103	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-26030	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26H00	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26H10	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26H20	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26H30	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26H40	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26031	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26032	Mounting, Front Disc Brake Cylinder, Lh
47722	47722-26033	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-26120	Cylinder Assy, Front Disc Brake, Rh
47730	47730-26H00	Cylinder Assy, Front Disc Brake, Rh
47730	47730-26H10	Cylinder Assy, Front Disc Brake, Rh
47730	47730-26H20	Cylinder Assy, Front Disc Brake, Rh
47730	47730-26121	Cylinder Assy, Front Disc Brake, Rh
47730	47730-26122	Cylinder Assy, Front Disc Brake, Rh
47731	47731-25010	Piston, Front Disc Brake
47731	90522-76001	Ring, Set(For Front Disc Brake Piston)
47750	47750-26120	Cylinder Assy, Disc Brake, Lh
47750	47750-26H00	Cylinder Assy, Disc Brake, Lh
47750	47750-26H10	Cylinder Assy, Disc Brake, Lh
47750	47750-26H20	Cylinder Assy, Disc Brake, Lh
47750	47750-26121	Cylinder Assy, Disc Brake, Lh
47750	47750-26122	Cylinder Assy, Disc Brake, Lh
47769	47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47771	47771-26030	Plate, Pad Wear Indicator, No.1
47772	47772-26030	Plate, Pad Wear Indicator, No.2
47775	47775-50010	Boot, Bush Dust(For Front Disc Brake)
47781	47703-26020	Cover, Disc Brake Dust, Front Rh
47781	47703-26021	Cover, Disc Brake Dust, Front Rh
47781	47703-26040	Cover, Disc Brake Dust, Front Rh
47782	47704-26020	Cover, Disc Brake Dust, Front Lh
47782	47704-26021	Cover, Disc Brake Dust, Front Lh
47782	47704-26040	Cover, Disc Brake Dust, Front Lh
9020112452	90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt

OEM	Part name	Category
04465-26300	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
04465-26370	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
04478-26030	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
04479-26060	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
04945-26150	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
04945-26151	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
04947-26040	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47703-26020	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47703-26021	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47703-26040	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47704-26020	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47704-26021	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47704-26040	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47715-50010	Pin, Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47715-50030	Pin, Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47716-26050	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47717-26020	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26100	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26101	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26102	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26103	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26H00	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26H10	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26H20	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26H30	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47721-26H40	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26030	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26031	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26032	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26033	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26H00	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26H10	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26H20	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26H30	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47722-26H40	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47730-26120	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47730-26121	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47730-26122	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47730-26H00	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47730-26H10	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47730-26H20	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47731-25010	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47750-26120	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47750-26121	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47750-26122	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47750-26H00	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47750-26H10	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47750-26H20	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47769-50010	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47771-26030	Plate, Pad Wear Indicator, No.1	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47772-26030	Plate, Pad Wear Indicator, No.2	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
47775-50010	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
90080-11396	Bolt	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
90101-12132	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
90522-76001	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
91651-60816	BOLT	Front Disc Brake Caliper & Dust Cover ([08.1995 - ] (9508- )KCH10,12,RCH11,VCH10,22)
