RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories
RCH11 ×

← Back to categories

6,006 items

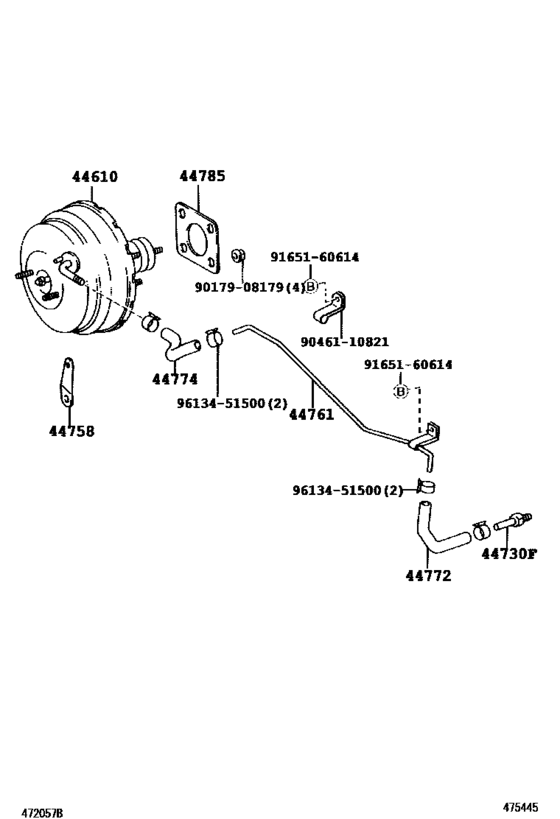

Brake Booster & Vacuum Tube ([08.1995 - 04.1998] (9508-9804)RCH11) 16
#OEMPart name
44610 44610-26480 Booster Assy, Brake
44610 44610-26520 Booster Assy, Brake
44610 44610-26590 Booster Assy, Brake
44610 44610-26760 Booster Assy, Brake
44730 90404-51319 Union, No.1
44758 44758-26080 Bracket, Vacuum Check Valve
44761 44761-26300 Tube, Intake Manifold Or Vacuum Pump To Connector
44772 44772-26170 Hose, Check Valve To Connector Tube
44772 44772-26190 Hose, Check Valve To Connector Tube
44774 44774-26280 Hose, Union To Connector Tube
44785 44785-20020 Gasket, Brake Booster
9017908179 90179-08179 New Genuine Part
9046110821 90461-10821 New Genuine Part
9165160614 91651-60614 Bolt
9613451500 96134-51500 Clip(For Ventilation Hose No.2)
9613451500 96133-41500 Clamp Or Clip(For Air Hose, No.5)
