Search › Model › RCH11

RCH11

Toyota GRANVIA-GRAND-HIACE · 1995 · 6,006 parts · 252 categories

6,006 items

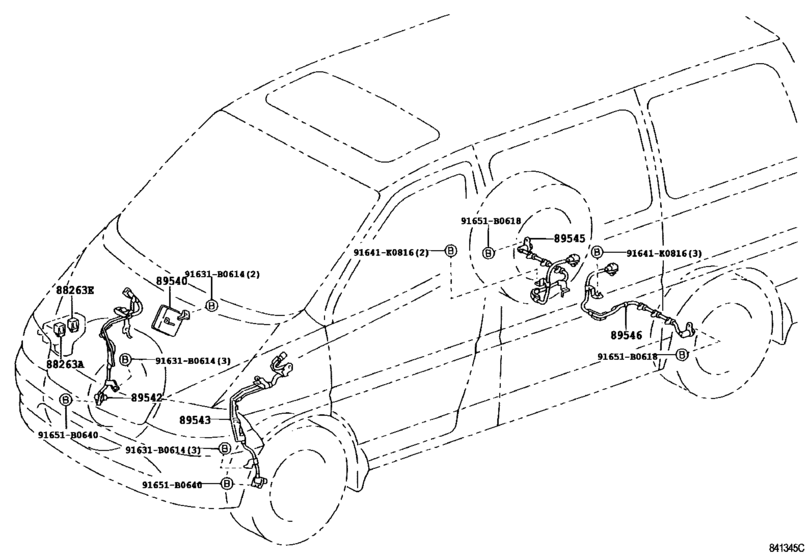

Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22) 20

#	OEM	Part name
88263	88263-14110	Relay Assy, Circuit Opening (For Esc)
88263	88263-24030	Relay, Skid Control
89540	89540-26050	Computer Assy, Skid Control
89540	89540-26100	Computer Assy, Skid Control
89540	89540-26170	Computer Assy, Skid Control
89542	89542-26040	Sensor, Speed, Front Rh
89542	89542-26080	Sensor, Speed, Front Rh
89543	89543-26040	Sensor, Speed, Front Lh
89543	89543-26080	Sensor, Speed, Front Lh
89545	89545-26030	Sensor, Speed, Rear Rh
89545	89545-26040	Sensor, Speed, Rear Rh
89545	89545-26060	Sensor, Speed, Rear Rh
89546	89546-26030	Sensor, Speed, Rear Lh
89546	89546-26040	Sensor, Speed, Rear Lh
89546	89546-26060	Sensor, Speed, Rear Lh
89546	89546-26080	Sensor, Speed, Rear Lh
91631	91631-B0614	BOLT WWASHER
91641	91641-K0816	BOLT WWASHER
91651	91651-B0618	BOLT WWASHER
91651	91651-B0640	Bolt, Rear Body Mounting

OEM	Part name	Category
88263-14110	Relay Assy, Circuit Opening (For Esc)	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
88263-24030	Relay, Skid Control	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89540-26050	Computer Assy, Skid Control	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89540-26100	Computer Assy, Skid Control	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89540-26170	Computer Assy, Skid Control	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89542-26040	Sensor, Speed, Front Rh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89542-26080	Sensor, Speed, Front Rh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89543-26040	Sensor, Speed, Front Lh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89543-26080	Sensor, Speed, Front Lh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89545-26030	Sensor, Speed, Rear Rh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89545-26040	Sensor, Speed, Rear Rh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89545-26060	Sensor, Speed, Rear Rh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89546-26030	Sensor, Speed, Rear Lh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89546-26040	Sensor, Speed, Rear Lh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89546-26060	Sensor, Speed, Rear Lh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
89546-26080	Sensor, Speed, Rear Lh	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
91631-B0614	BOLT WWASHER	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
91641-K0816	BOLT WWASHER	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
91651-B0618	BOLT WWASHER	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
91651-B0640	Bolt, Rear Body Mounting	Abs & Vsc ([08.1996 - 01.2005] (9608-0501)KCH10,12,RCH11,VCH10,22)
