| 01550-0612A-000 |
Bolt |

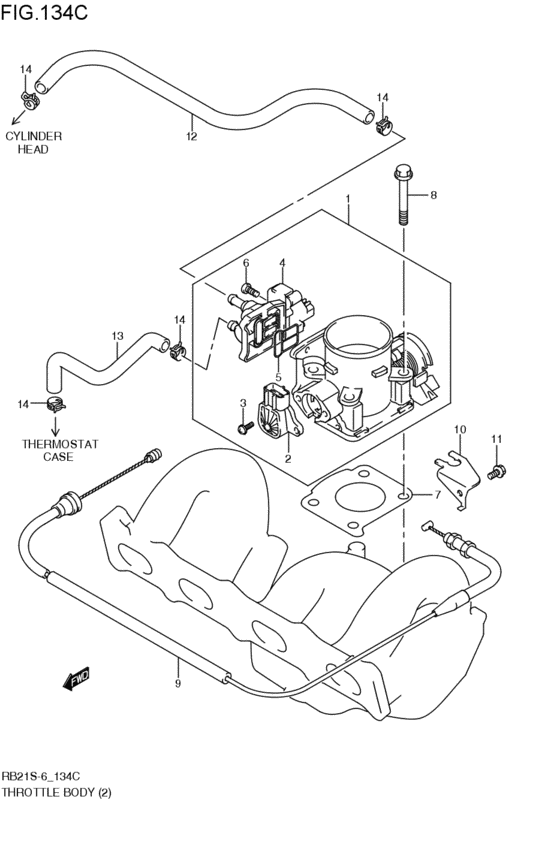

throttle body (M18A; 2005-12-01~2007-05-01) |
| 01550-0855A-000 |
Bolt - Bolt, gear holder |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13400-54G20-000 |
BODY ASSY,THROTTLE |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13420-54G00-000 |
SENSORTHROTTLE POSITION |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13420-54G01-000 |
SENSOR,THROTTLE POSITION |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13421-54G10-000 |
GASKET,THROTTLE BODY |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13428-77G10-000 |
Screw |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13428-77G1V-000 |
SCREW,4X12 |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13491-54G10-000 |
HOSE,WTR THROT BODY INLET |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13492-80GA0-000 |
HOSE,WTR THROT BODY OUTLET |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13602-47190-000 |
スクリュ,5X18 |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 13602-4719V-000 |
SCREW(5X18) |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 14139-54G00-000 |
GASKET,ISC VALVE |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 15910-54G01-000 |
ケーブルアッシ,アクセル |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 15910-54G02-000 |
CABLE ASSY,ACCEL |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 15919-54G00-000 |
GUIDE,ACCEL CABLE |
throttle body (M18A; 2005-12-01~2007-05-01) |
| 18137-54G10-000 |
VALVE,IAC |
throttle body (M18A; 2005-12-01~2007-05-01) |
