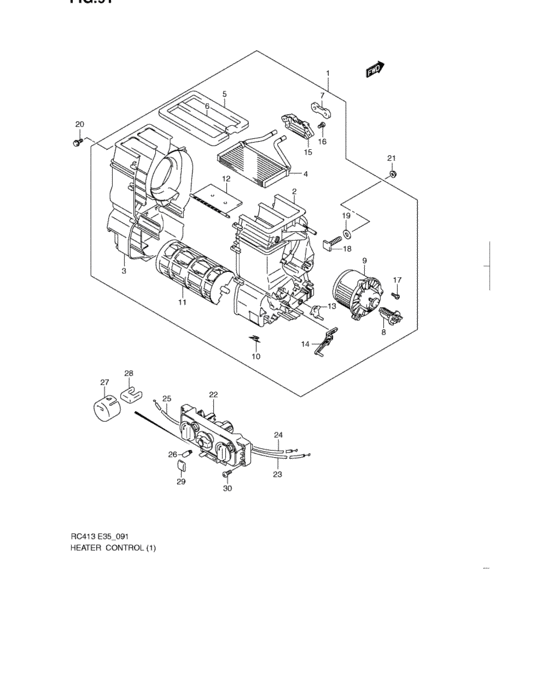

Heater control (TYPE 1)
35
| # | OEM | Part name |
|---|
| 1 |
74100-78F04-000 |
HEATER UNIT |
| 2 |
74111-78F02-000 |
CASE,HEATER,R |
| 2 |
74111-78F05-000 |
CASE,HTR,L |
| 3 |
74112-78F01-000 |
ケース,ヒータ,レフト |
| 3 |
74112-78F03-000 |
CASE,HTR,R |
| 4 |
74120-80G00-000 |
CORE,HEATER |
| 5 |
74116-78F00-000 |
PACKING |
| 6 |
74117-78F00-000 |
PACKING |
| 7 |
74118-80G00-000 |
PACKING |
| 8 |
74140-78F00-000 |
RESISTOR,BLOWER |
| 9 |
74150-78F00-000 |
MOTOR ASSY,FAN |
| 10 |
74151-50F00-000 |
CABLE |
| 11 |
74171-78F00-000 |
DOOR ASSY,MODE |
| 12 |
74172-78F00-000 |
DOOR ASSY,AIR MIXTURE |
| 13 |
74182-78F00-000 |
LEVER,MODE |
| 14 |
74181-78F00-000 |
LEVER,AIR MXT |
| 15 |
74191-78F00-000 |
BRACKET |
| 16 |
03511-0416A-000 |
SCREW |
| 17 |
74135-82000-000 |
SCREW,MOTOR |
| 18 |
74115-65D00-000 |
Bolt |
| 19 |
74119-78F00-000 |
WASHER,RBR |
| 20 |
09113-06006-000 |
BOLT(6X20) |
| 20 |
09113-06014-000 |
BOLT(6X20) |
| 21 |
09159-06081-000 |
NUT |
| 22 |
74400-78F21-5PK |
LEVER ASSY,HTR CONT |
| 23 |
74451-78F00-000 |
CABLE,MODE CONTROL |
| 24 |
74452-78F00-000 |
CABLE,TEMP CONTROL |
| 25 |
74453-78F00-000 |
Cable,f&r control |
| 25 |
74453-78F01-000 |
Cable,f&r control |
| 26 |
74531-76F00-000 |
BULB,13.5V 2W |
| 26 |
74531-76F10-000 |
BULB,13.5V 2W |
| 27 |
95521-76F00-5PK |
KNOB,A/C SW |
| 28 |
95522-76F00-000 |
INDICATOR,AIRCON SWITCH |
| 29 |
74463-76F00-5PK |
KNOB,HTR CONT FR&RR |
| 30 |
03541-0512B-000 |
SCREW |
| OEM |
Part name |
Category |
| 03511-0416A-000 |
SCREW |
Heater control (TYPE 1) |
| 03541-0512B-000 |
SCREW |
Heater control (TYPE 1) |
| 09113-06006-000 |
BOLT(6X20) |
Heater control (TYPE 1) |
| 09113-06014-000 |
BOLT(6X20) |
Heater control (TYPE 1) |
| 09159-06081-000 |
NUT |
Heater control (TYPE 1) |
| 74100-78F04-000 |
HEATER UNIT |
Heater control (TYPE 1) |
| 74111-78F02-000 |
CASE,HEATER,R |
Heater control (TYPE 1) |
| 74111-78F05-000 |
CASE,HTR,L |
Heater control (TYPE 1) |
| 74112-78F01-000 |
ケース,ヒータ,レフト |
Heater control (TYPE 1) |
| 74112-78F03-000 |
CASE,HTR,R |
Heater control (TYPE 1) |
| 74115-65D00-000 |
Bolt |
Heater control (TYPE 1) |
| 74116-78F00-000 |
PACKING |
Heater control (TYPE 1) |
| 74117-78F00-000 |
PACKING |
Heater control (TYPE 1) |
| 74118-80G00-000 |
PACKING |
Heater control (TYPE 1) |
| 74119-78F00-000 |
WASHER,RBR |
Heater control (TYPE 1) |
| 74120-80G00-000 |
CORE,HEATER |
Heater control (TYPE 1) |
| 74135-82000-000 |
SCREW,MOTOR |
Heater control (TYPE 1) |
| 74140-78F00-000 |
RESISTOR,BLOWER |
Heater control (TYPE 1) |
| 74150-78F00-000 |
MOTOR ASSY,FAN |
Heater control (TYPE 1) |
| 74151-50F00-000 |
CABLE |
Heater control (TYPE 1) |
| 74171-78F00-000 |
DOOR ASSY,MODE |
Heater control (TYPE 1) |
| 74172-78F00-000 |
DOOR ASSY,AIR MIXTURE |
Heater control (TYPE 1) |
| 74181-78F00-000 |
LEVER,AIR MXT |
Heater control (TYPE 1) |
| 74182-78F00-000 |
LEVER,MODE |
Heater control (TYPE 1) |
| 74191-78F00-000 |
BRACKET |
Heater control (TYPE 1) |
| 74400-78F21-5PK |
LEVER ASSY,HTR CONT |
Heater control (TYPE 1) |
| 74451-78F00-000 |
CABLE,MODE CONTROL |
Heater control (TYPE 1) |
| 74452-78F00-000 |
CABLE,TEMP CONTROL |
Heater control (TYPE 1) |
| 74453-78F00-000 |
Cable,f&r control |
Heater control (TYPE 1) |
| 74453-78F01-000 |
Cable,f&r control |
Heater control (TYPE 1) |
| 74463-76F00-5PK |
KNOB,HTR CONT FR&RR |
Heater control (TYPE 1) |
| 74531-76F00-000 |
BULB,13.5V 2W |
Heater control (TYPE 1) |
| 74531-76F10-000 |
BULB,13.5V 2W |
Heater control (TYPE 1) |
| 95521-76F00-5PK |
KNOB,A/C SW |
Heater control (TYPE 1) |
| 95522-76F00-000 |
INDICATOR,AIRCON SWITCH |
Heater control (TYPE 1) |
