RC413

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2,744 parts · 133 categories

2,744 items

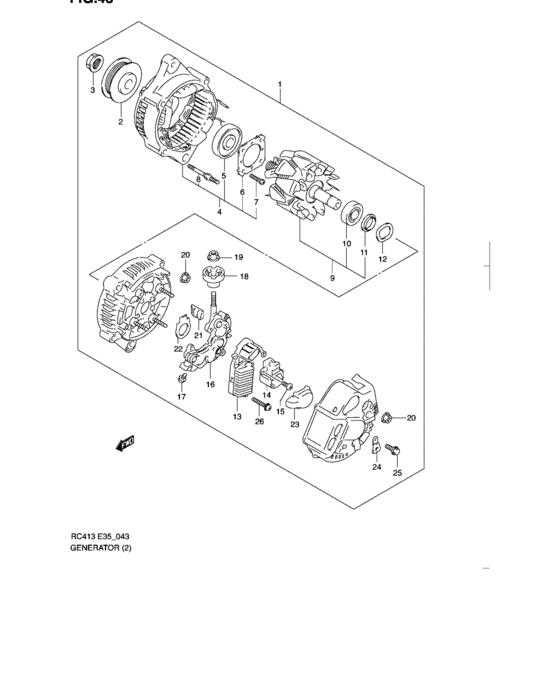

Generator (TYPE 2,3,4,5,6) 34

#	OEM	Part name
1	31400-80G10-000	Generator assy
1	31400-80G11-000	GENERATOR ASSY
1	31400-80G12-000	Generator Assy
2	31171-60G30-000	PULLEY
3	31775-86510-000	NUT
4	31580-77E10-000	Frame assy,drive end
4	31580-77E11-000	FRAME ASSY,DRIVE END
5	31582-77E10-000	Bearing
5	31582-77E11-000	BEARING,BALL
6	31585-77E10-000	RETAINER,BEARING
7	31586-77E10-000	SCREW
8	31587-82110-000	Bolt
9	31710-80G00-000	Rotor assy
9	31710-80G01-000	ROTOR ASSY
10	31612-77E10-000	Bearing
10	31612-77E11-000	BEARING,REAR
11	31613-82610-000	COVER,BEARING
12	31615-77E10-000	WASHER
13	32500-80G10-000	REGULATOR ASSY
14	31656-77E10-000	HOLDER ASSY,BRUSH
15	31516-85250-000	SCREW
15	02112-0406B-000	SCREW
16	31621-77E10-000	Rectifier Assy
17	31516-77E10-000	SCREW
18	31514-77E11-000	INSULATOR,TERMINAL
19	08310-0006B-000	NUT - Nut gear shift link rod
20	08316-1005A-000	NUT
21	31622-77E10-000	INSULATOR
22	31619-77E10-000	SEAL RING
23	31620-77E10-000	SEAL RING
24	31512-77E10-000	PLATE,TERMINAL
25	31515-77E10-000	SCREW
26	02112-74253-000	SCREW
26	32642-80G10-000	SCREW

OEM	Part name	Category
02112-0406B-000	SCREW	Generator (TYPE 2,3,4,5,6)
02112-74253-000	SCREW	Generator (TYPE 2,3,4,5,6)
08310-0006B-000	NUT - Nut gear shift link rod	Generator (TYPE 2,3,4,5,6)
08316-1005A-000	NUT	Generator (TYPE 2,3,4,5,6)
31171-60G30-000	PULLEY	Generator (TYPE 2,3,4,5,6)
31400-80G10-000	Generator assy	Generator (TYPE 2,3,4,5,6)
31400-80G11-000	GENERATOR ASSY	Generator (TYPE 2,3,4,5,6)
31400-80G12-000	Generator Assy	Generator (TYPE 2,3,4,5,6)
31512-77E10-000	PLATE,TERMINAL	Generator (TYPE 2,3,4,5,6)
31514-77E11-000	INSULATOR,TERMINAL	Generator (TYPE 2,3,4,5,6)
31515-77E10-000	SCREW	Generator (TYPE 2,3,4,5,6)
31516-77E10-000	SCREW	Generator (TYPE 2,3,4,5,6)
31516-85250-000	SCREW	Generator (TYPE 2,3,4,5,6)
31580-77E10-000	Frame assy,drive end	Generator (TYPE 2,3,4,5,6)
31580-77E11-000	FRAME ASSY,DRIVE END	Generator (TYPE 2,3,4,5,6)
31582-77E10-000	Bearing	Generator (TYPE 2,3,4,5,6)
31582-77E11-000	BEARING,BALL	Generator (TYPE 2,3,4,5,6)
31585-77E10-000	RETAINER,BEARING	Generator (TYPE 2,3,4,5,6)
31586-77E10-000	SCREW	Generator (TYPE 2,3,4,5,6)
31587-82110-000	Bolt	Generator (TYPE 2,3,4,5,6)
31612-77E10-000	Bearing	Generator (TYPE 2,3,4,5,6)
31612-77E11-000	BEARING,REAR	Generator (TYPE 2,3,4,5,6)
31613-82610-000	COVER,BEARING	Generator (TYPE 2,3,4,5,6)
31615-77E10-000	WASHER	Generator (TYPE 2,3,4,5,6)
31619-77E10-000	SEAL RING	Generator (TYPE 2,3,4,5,6)
31620-77E10-000	SEAL RING	Generator (TYPE 2,3,4,5,6)
31621-77E10-000	Rectifier Assy	Generator (TYPE 2,3,4,5,6)
31622-77E10-000	INSULATOR	Generator (TYPE 2,3,4,5,6)
31656-77E10-000	HOLDER ASSY,BRUSH	Generator (TYPE 2,3,4,5,6)
31710-80G00-000	Rotor assy	Generator (TYPE 2,3,4,5,6)
31710-80G01-000	ROTOR ASSY	Generator (TYPE 2,3,4,5,6)
31775-86510-000	NUT	Generator (TYPE 2,3,4,5,6)
32500-80G10-000	REGULATOR ASSY	Generator (TYPE 2,3,4,5,6)
32642-80G10-000	SCREW	Generator (TYPE 2,3,4,5,6)
