Search › Model › RC413
RC413

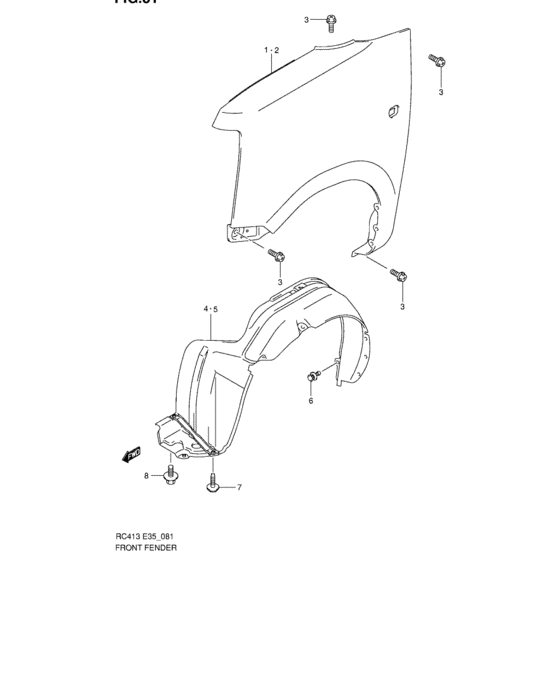

Front fender (FRONT FENDER) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 57611-78F50-000 | PANEL,FR FENDER,R |
| 2 | 57711-78F50-000 | PANEL,FR FENDER,L |
| 3 | 01550-0612A-000 | Bolt |
| 4 | 72430-78F00-000 | LINING,FR FENDER,R |
| 5 | 72440-78F00-000 | LINING,FR FENDER,L |
| 6 | 09409-07332-000 | CLIP |
| 7 | 09136-05034-000 | SCREW(5X16) |
| 8 | 09116-06167-000 | BOLT(6X20) - Bolt (6x20) |
| 8 | 09116-06115-000 | BOLT(6X20) - Bolt (6x20) |
| OEM | Part name | Category |
|---|---|---|
| 01550-0612A-000 | Bolt | Front fender (FRONT FENDER) |
| 09116-06115-000 | BOLT(6X20) - Bolt (6x20) | Front fender (FRONT FENDER) |
| 09116-06167-000 | BOLT(6X20) - Bolt (6x20) | Front fender (FRONT FENDER) |
| 09136-05034-000 | SCREW(5X16) | Front fender (FRONT FENDER) |
| 09409-07332-000 | CLIP | Front fender (FRONT FENDER) |
| 57611-78F50-000 | PANEL,FR FENDER,R | Front fender (FRONT FENDER) |
| 57711-78F50-000 | PANEL,FR FENDER,L | Front fender (FRONT FENDER) |
| 72430-78F00-000 | LINING,FR FENDER,R | Front fender (FRONT FENDER) |
| 72440-78F00-000 | LINING,FR FENDER,L | Front fender (FRONT FENDER) |
