RC413

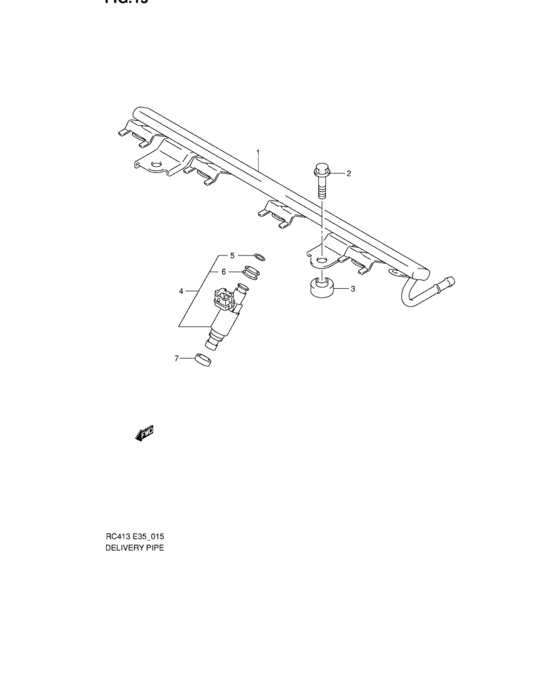

Delivery pipe (DELIVERY PIPE) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 15730-80GA0-000 | PIPE,FUEL DELIVERY |
| 2 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover |
| 3 | 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe |
| 4 | 15710-80G01-000 | INJECTOR ASSY,FUEL |
| 5 | 15710-09300-000 | O-RING |
| 6 | 15720-09300-000 | GROMMET |
| 7 | 09320-08062-000 | CUSHION |
| OEM | Part name | Category |
|---|---|---|
| 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Delivery pipe (DELIVERY PIPE) |
| 09320-08062-000 | CUSHION | Delivery pipe (DELIVERY PIPE) |
| 15710-09300-000 | O-RING | Delivery pipe (DELIVERY PIPE) |
| 15710-80G01-000 | INJECTOR ASSY,FUEL | Delivery pipe (DELIVERY PIPE) |
| 15720-09300-000 | GROMMET | Delivery pipe (DELIVERY PIPE) |
| 15730-80GA0-000 | PIPE,FUEL DELIVERY | Delivery pipe (DELIVERY PIPE) |
| 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe | Delivery pipe (DELIVERY PIPE) |
