Search › Model › RC413
RC413

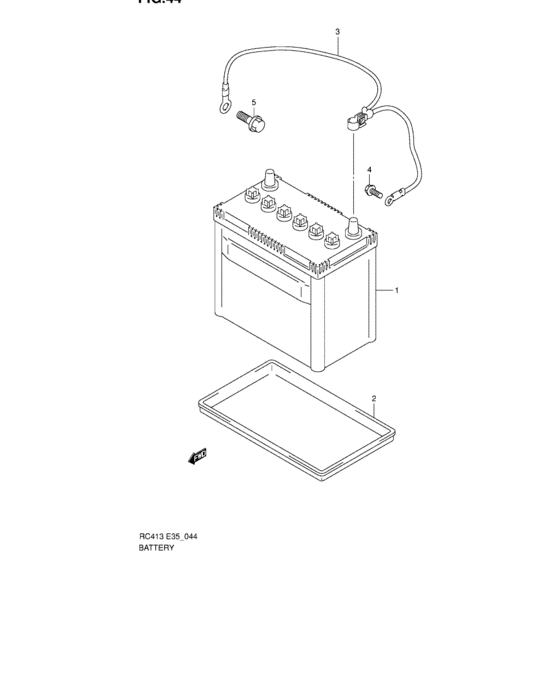

Battery (BATTERY) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-60G10-000 | Battery,55b24l,12v38ah/5hr |
| 1 | 33610-60GV1-000 | BATTERY ASSY,55B24L [Cannot be supplied] |
| 1 | 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33850-78F80-000 | CABLE ASSY,BATTERY GND |
| 4 | 09115-06005-000 | BOLT(6X16) |
| 5 | 01550-0812B-000 | Bolt - Plug, drain |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812B-000 | Bolt - Plug, drain | Battery (BATTERY) |
| 09115-06005-000 | BOLT(6X16) | Battery (BATTERY) |
| 33610-60G10-000 | Battery,55b24l,12v38ah/5hr | Battery (BATTERY) |
| 33610-60GV1-000 | BATTERY ASSY,55B24L [Cannot be supplied] | Battery (BATTERY) |
| 33610-71320-000 | Battery assy (38b20l,12v,28ah/ - Battery assy (38b20l,12v,28ah/5hr) | Battery (BATTERY) |
| 33660-71L10-000 | TRAY,BATTERY | Battery (BATTERY) |
| 33660-73010-000 | Tray, battery | Battery (BATTERY) |
| 33850-78F80-000 | CABLE ASSY,BATTERY GND | Battery (BATTERY) |
