RC410

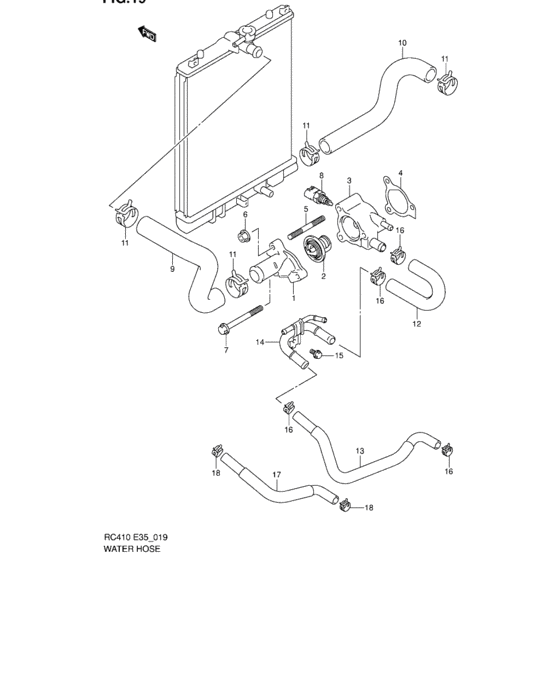

Water hose (WATER HOSE) 25
| # | OEM | Part name |
|---|---|---|
| 1 | 17561-78F00-000 | CAP,WTR THERMO |
| 2 | 17670-76G00-000 | THERMOSTAT,WATER 82 DEG |
| 3 | 17690-75FV1-000 | CASE,THERMOSTAT |
| 4 | 17699-73G01-000 | GASKET,THERMOSTAT CASE - Gasket, thermostat case |
| 5 | 01421-08753-000 | Stud bolt |
| 5 | 01421-0875A-000 | BOLT,STUD |
| 6 | 08316-10083-000 | Nut |
| 6 | 08316-1008B-000 | NUT |
| 7 | 01550-08803-000 | Bolt (8x80) |
| 7 | 01550-0880B-000 | Bolt - Bolt, muffler bracket & stand |
| 7 | 01550-0880A-000 | Bolt |
| 8 | 13650-50G01-000 | Sensor,water Temp |
| 9 | 17852-78F00-000 | HOSE,RDTR INLET |
| 10 | 17854-78F00-000 | HOSE,RDTR OUTLET |
| 11 | 09401-30403-000 | CLIP |
| 11 | 09401-30405-000 | CLIP |
| 12 | 17871-78F00-000 | HOSE,HTR INLET NO.1 |
| 13 | 17873-78F00-000 | HOSE,HTR INLET NO.2 |
| 14 | 17875-78F00-000 | パイプ,ヒータ,インレット |
| 14 | 17875-78F0V-000 | PIPE,HEATER INLET |
| 15 | 01550-06123-000 | Bolt |
| 15 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 15 | 01550-0612A-000 | Bolt |
| 16 | 09401-18403-000 | CLIP - Clip, heater hose |
| 17 | 17872-78F00-000 | Hose,htr outlet |
| OEM | Part name | Category |
|---|---|---|
| 01421-08753-000 | Stud bolt | Water hose (WATER HOSE) |
| 01421-0875A-000 | BOLT,STUD | Water hose (WATER HOSE) |
| 01550-06123-000 | Bolt | Water hose (WATER HOSE) |
| 01550-0612A-000 | Bolt | Water hose (WATER HOSE) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Water hose (WATER HOSE) |
| 01550-08803-000 | Bolt (8x80) | Water hose (WATER HOSE) |
| 01550-0880A-000 | Bolt | Water hose (WATER HOSE) |
| 01550-0880B-000 | Bolt - Bolt, muffler bracket & stand | Water hose (WATER HOSE) |
| 08316-10083-000 | Nut | Water hose (WATER HOSE) |
| 08316-1008B-000 | NUT | Water hose (WATER HOSE) |
| 09401-18403-000 | CLIP - Clip, heater hose | Water hose (WATER HOSE) |
| 09401-30403-000 | CLIP | Water hose (WATER HOSE) |
| 09401-30405-000 | CLIP | Water hose (WATER HOSE) |
| 13650-50G01-000 | Sensor,water Temp | Water hose (WATER HOSE) |
| 17561-78F00-000 | CAP,WTR THERMO | Water hose (WATER HOSE) |
| 17670-76G00-000 | THERMOSTAT,WATER 82 DEG | Water hose (WATER HOSE) |
| 17690-75FV1-000 | CASE,THERMOSTAT | Water hose (WATER HOSE) |
| 17699-73G01-000 | GASKET,THERMOSTAT CASE - Gasket, thermostat case | Water hose (WATER HOSE) |
| 17852-78F00-000 | HOSE,RDTR INLET | Water hose (WATER HOSE) |
| 17854-78F00-000 | HOSE,RDTR OUTLET | Water hose (WATER HOSE) |
| 17871-78F00-000 | HOSE,HTR INLET NO.1 | Water hose (WATER HOSE) |
| 17872-78F00-000 | Hose,htr outlet | Water hose (WATER HOSE) |
| 17873-78F00-000 | HOSE,HTR INLET NO.2 | Water hose (WATER HOSE) |
| 17875-78F00-000 | パイプ,ヒータ,インレット | Water hose (WATER HOSE) |
| 17875-78F0V-000 | PIPE,HEATER INLET | Water hose (WATER HOSE) |
