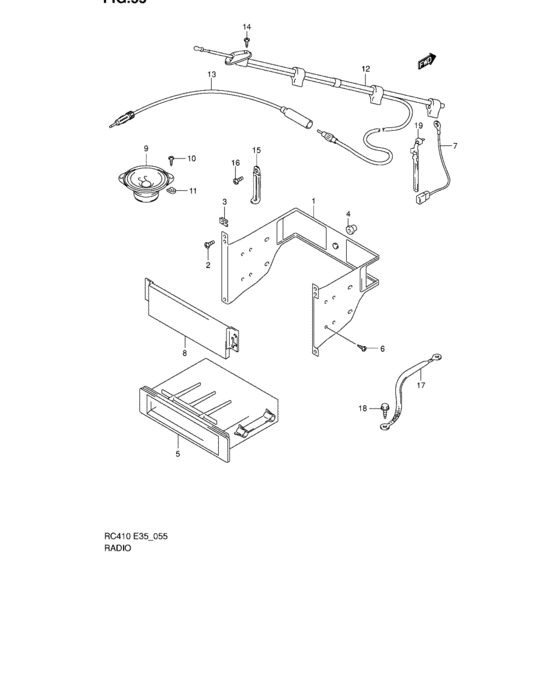

Radio (RADIO)
27
| # | OEM | Part name |
|---|
| 1 |
39321-65D00-000 |
BRACKET,TUNER |
| 2 |
03541-05203-000 |
Screw |
| 2 |
03541-0520A-000 |
SCREW |
| 3 |
09148-05045-000 |
NUT |
| 4 |
34955-60E00-000 |
BUSH |
| 5 |
39182-70E21-000 |
Pocket, tuner |
| 5 |
39182-70E51-000 |
POCKET,TUNER |
| 6 |
03242-05123-000 |
Screw, inner cover |
| 6 |
03241-0512A-000 |
SCREW |
| 7 |
39192-74G00-000 |
Wire, tuner ground no.2 |
| 7 |
39192-76G10-000 |
WIRE,TUNER GND NO.2 |
| 8 |
39161-70E01-000 |
COVER,RADIO HOLE |
| 9 |
39102-60F00-000 |
SPEAKER ASSY |
| 10 |
03541-05123-000 |
Screw |
| 10 |
03541-0512B-000 |
SCREW |
| 12 |
39250-76F20-000 |
ANTENNA ASSY |
| 13 |
39271-75F00-000 |
FEEDER,ANT |
| 14 |
39251-60D01-000 |
Screw |
| 14 |
09129-04003-000 |
SCREW(4X12) |
| 14 |
09125-04033-000 |
スクリュ,4X16 |
| 15 |
09404-06432-000 |
CLAMP(L:65) - Clamp (l:80) |
| 15 |
09404-06039-000 |
Clamp(L:65) |
| 17 |
39312-78F00-000 |
Wire, noise suppressor |
| 17 |
39312-78F01-000 |
WIRE,NOISE SUPPR |
| 18 |
09115-06001-000 |
Bolt, lh - Bolt (6x16) |
| 18 |
09115-06005-000 |
BOLT(6X16) |
| 19 |
09407-12404-000 |
CLAMP(L:140) |
| OEM |
Part name |
Category |
| 03241-0512A-000 |
SCREW |
Radio (RADIO) |
| 03242-05123-000 |
Screw, inner cover |
Radio (RADIO) |
| 03541-05123-000 |
Screw |
Radio (RADIO) |
| 03541-0512B-000 |
SCREW |
Radio (RADIO) |
| 03541-05203-000 |
Screw |
Radio (RADIO) |
| 03541-0520A-000 |
SCREW |
Radio (RADIO) |
| 09115-06001-000 |
Bolt, lh - Bolt (6x16) |
Radio (RADIO) |
| 09115-06005-000 |
BOLT(6X16) |
Radio (RADIO) |
| 09125-04033-000 |
スクリュ,4X16 |
Radio (RADIO) |
| 09129-04003-000 |
SCREW(4X12) |
Radio (RADIO) |
| 09148-05045-000 |
NUT |
Radio (RADIO) |
| 09404-06039-000 |
Clamp(L:65) |
Radio (RADIO) |
| 09404-06432-000 |
CLAMP(L:65) - Clamp (l:80) |
Radio (RADIO) |
| 09407-12404-000 |
CLAMP(L:140) |
Radio (RADIO) |
| 34955-60E00-000 |
BUSH |
Radio (RADIO) |
| 39102-60F00-000 |
SPEAKER ASSY |
Radio (RADIO) |
| 39161-70E01-000 |
COVER,RADIO HOLE |
Radio (RADIO) |
| 39182-70E21-000 |
Pocket, tuner |
Radio (RADIO) |
| 39182-70E51-000 |
POCKET,TUNER |
Radio (RADIO) |
| 39192-74G00-000 |
Wire, tuner ground no.2 |
Radio (RADIO) |
| 39192-76G10-000 |
WIRE,TUNER GND NO.2 |
Radio (RADIO) |
| 39250-76F20-000 |
ANTENNA ASSY |
Radio (RADIO) |
| 39251-60D01-000 |
Screw |
Radio (RADIO) |
| 39271-75F00-000 |
FEEDER,ANT |
Radio (RADIO) |
| 39312-78F00-000 |
Wire, noise suppressor |
Radio (RADIO) |
| 39312-78F01-000 |
WIRE,NOISE SUPPR |
Radio (RADIO) |
| 39321-65D00-000 |
BRACKET,TUNER |
Radio (RADIO) |
