Search › Model › RC410

RC410

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2,585 parts · 118 categories

2,585 items

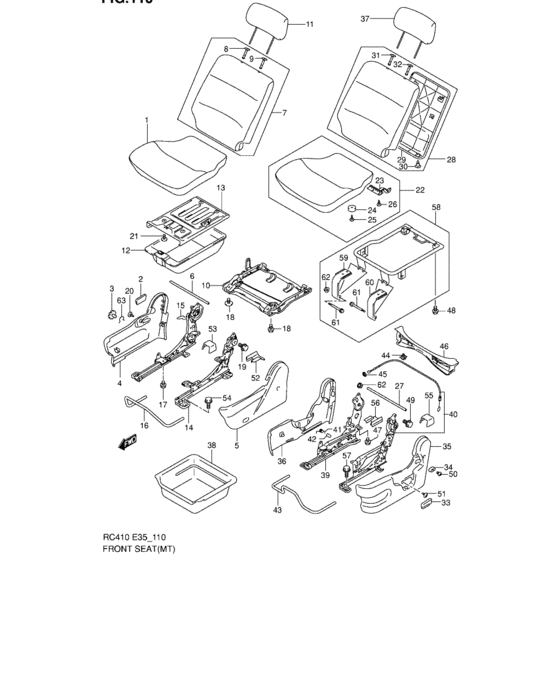

Front seat (MT) 79

#	OEM	Part name
1	85101-78F00-N0N	Cushion assy, front
2	85211-76G00-V12	Knob, reclining rh (gray)
2	85211-75H00-P4Z	KNOB,RECL,R
3	85212-76F00-V12	KNOB,LIFTER,R
3	85212-76F00-P4Z	KNOB
4	85221-76F00-V12	カバー,リクライニングアウトサイド,ライト(グレー)
4	85221-76F02-V12	COVER,RECL OUTSIDE,R
5	85241-76F01-V12	カバー,リクライニングインサイド,ライト(グレー)
5	85241-76F03-V12	Cover,recl indide,r(gray)
6	85250-78F00-000	ROD,FR ADJUSTER
7	85301-78F00-N0N	Back assy, front
8	85341-81A00-T01	GUIDE,HEADRESTRAINT
9	85840-81A00-T01	Guide, headrestraint (gray)
9	85840-81A10-T01	GUIDE,HEADRESTRAINT
10	86110-78F00-000	Lifter assy, front rh
10	86520-76F01-000	BRACKET,UNDER TRAY
11	86401-76F00-W57	ヘッドレストレイントアッシ
11	86401-76F01-W57	Headrestraint assy
12	86510-76F01-000	TRAY ASSY,FR UNDER
13	86520-76F00-000	BRACKET,UNDER TRAY
14	86601-78F00-000	Adjuster assy, fr inside rh
14	86601-78F02-000	ADJUSTER ASSY,FR INSIDE,R
15	86603-78F00-000	Adjuster assy, fr outside rh
15	86603-78F01-000	ADJUSTER ASSY,FR OUTSIDE,R
16	86691-78F00-000	HANDLE,FR ADJ,R
17	01550-08123-000	Bolt - Plug, oil gallery
17	01550-0812B-000	Bolt - Plug, drain
17	01550-0812A-000	Bolt
18	01550-08163-000	Bolt, holder
18	01550-0816B-000	Bolt
18	01550-0816A-000	Bolt - Bolt, rear
19	01550-10203-000	Bolt - Bolt, lower
19	01550-1020A-000	Bolt - Bolt, bal sprocket
20	03242-05103-000	Screw
20	03242-0510B-000	SCREW
20	03241-0510A-000	SCREW
21	03242-05123-000	Screw, inner cover
21	03241-0512A-000	SCREW
22	85102-78FA0-N0N	Cushion assy,fr,l
23	85970-75F00-000	LOCK,FR CUSH
24	87196-83000-000	CUSHION
27	85250-78FA0-000	ROD,FR ADJUSTER
28	85302-78FA0-N0N	Back assy,fr,l
29	85890-76FA0-V12	Board,fr back(gray)
29	85890-76FA0-P4Z	BOARD,FR BACK
30	85891-76FA0-V12	CLIP,BOARD
33	85711-76G00-V12	Knob, reclining lh (gray)
33	85711-75H00-P4Z	KNOB,RECL,L
34	85713-76FA0-V12	Knob,recl stopper
35	85721-78FA0-V12	Cover, reclining outside lh - Gray
35	85721-78FA2-V12	COVER RECL OUTSIDR,L
36	85741-78FA0-V12	Cover, reclining inside lh - Gray
36	85741-78FA2-V12	COVER,RECL INSIDE,L
38	86510-78FA0-000	BOX ASSY,CONV
39	86602-78FA0-000	アジャスタアッシ,フロントインサイド,レフト
39	86602-78FA1-000	ADJUSTER ASSY,FR INSIDE,L
40	86604-78FA0-000	ADJUSTER ASSY,FR OUTSIDE,L
41	86856-76FA0-000	SPRING,FR BUCKLE
42	86857-76FA0-000	COLLAR,FR BUCKLE SPRING
43	86891-78FA0-000	HANDLE,FR ADJUSTER,L
44	15911-63B00-000	Clamp, Cable
44	75411-76G00-000	Clamp, Cable
45	85752-78FA0-000	NUT,ADJUSTER CABLE
46	85785-78FA0-V12	Cover,recl cable,rr
50	03211-05083-000	スクリュ
50	03211-0508B-000	SCREW
52	85495-76G00-T01	COVER,RR INSIDE,R
53	85496-76F00-T01	COVER,RR OUTSIDE
54	01551-10253-000	Bolt
54	01551-1025A-000	Bolt
56	85995-76G00-T01	COVER,RR INSIDE,L
58	85760-78FA0-000	MEMBER ASSY,FR CONV,L
59	85761-76FA0-000	メール,メンバ,インサイド
59	85762-76FA0-000	MAIL,MBR OUT
61	85763-76FA0-000	Bolt,member hinge
61	85763-76FA1-000	BOLT,MEMBER HINGE
62	08316-20063-000	Nut
62	08316-2006A-000	NUT
63	78463-78000-000	SNAP

OEM	Part name	Category
01550-08123-000	Bolt - Plug, oil gallery	Front seat (MT)
01550-0812A-000	Bolt	Front seat (MT)
01550-0812B-000	Bolt - Plug, drain	Front seat (MT)
01550-08163-000	Bolt, holder	Front seat (MT)
01550-0816A-000	Bolt - Bolt, rear	Front seat (MT)
01550-0816B-000	Bolt	Front seat (MT)
01550-10203-000	Bolt - Bolt, lower	Front seat (MT)
01550-1020A-000	Bolt - Bolt, bal sprocket	Front seat (MT)
01551-10253-000	Bolt	Front seat (MT)
01551-1025A-000	Bolt	Front seat (MT)
03211-05083-000	スクリュ	Front seat (MT)
03211-0508B-000	SCREW	Front seat (MT)
03241-0510A-000	SCREW	Front seat (MT)
03241-0512A-000	SCREW	Front seat (MT)
03242-05103-000	Screw	Front seat (MT)
03242-0510B-000	SCREW	Front seat (MT)
03242-05123-000	Screw, inner cover	Front seat (MT)
08316-20063-000	Nut	Front seat (MT)
08316-2006A-000	NUT	Front seat (MT)
15911-63B00-000	Clamp, Cable	Front seat (MT)
75411-76G00-000	Clamp, Cable	Front seat (MT)
78463-78000-000	SNAP	Front seat (MT)
85101-78F00-N0N	Cushion assy, front	Front seat (MT)
85102-78FA0-N0N	Cushion assy,fr,l	Front seat (MT)
85211-75H00-P4Z	KNOB,RECL,R	Front seat (MT)
85211-76G00-V12	Knob, reclining rh (gray)	Front seat (MT)
85212-76F00-P4Z	KNOB	Front seat (MT)
85212-76F00-V12	KNOB,LIFTER,R	Front seat (MT)
85221-76F00-V12	カバー,リクライニングアウトサイド,ライト(グレー)	Front seat (MT)
85221-76F02-V12	COVER,RECL OUTSIDE,R	Front seat (MT)
85241-76F01-V12	カバー,リクライニングインサイド,ライト(グレー)	Front seat (MT)
85241-76F03-V12	Cover,recl indide,r(gray)	Front seat (MT)
85250-78F00-000	ROD,FR ADJUSTER	Front seat (MT)
85250-78FA0-000	ROD,FR ADJUSTER	Front seat (MT)
85301-78F00-N0N	Back assy, front	Front seat (MT)
85302-78FA0-N0N	Back assy,fr,l	Front seat (MT)
85341-81A00-T01	GUIDE,HEADRESTRAINT	Front seat (MT)
85495-76G00-T01	COVER,RR INSIDE,R	Front seat (MT)
85496-76F00-T01	COVER,RR OUTSIDE	Front seat (MT)
85711-75H00-P4Z	KNOB,RECL,L	Front seat (MT)
85711-76G00-V12	Knob, reclining lh (gray)	Front seat (MT)
85713-76FA0-V12	Knob,recl stopper	Front seat (MT)
85721-78FA0-V12	Cover, reclining outside lh - Gray	Front seat (MT)
85721-78FA2-V12	COVER RECL OUTSIDR,L	Front seat (MT)
85741-78FA0-V12	Cover, reclining inside lh - Gray	Front seat (MT)
85741-78FA2-V12	COVER,RECL INSIDE,L	Front seat (MT)
85752-78FA0-000	NUT,ADJUSTER CABLE	Front seat (MT)
85760-78FA0-000	MEMBER ASSY,FR CONV,L	Front seat (MT)
85761-76FA0-000	メール,メンバ,インサイド	Front seat (MT)
85762-76FA0-000	MAIL,MBR OUT	Front seat (MT)
85763-76FA0-000	Bolt,member hinge	Front seat (MT)
85763-76FA1-000	BOLT,MEMBER HINGE	Front seat (MT)
85785-78FA0-V12	Cover,recl cable,rr	Front seat (MT)
85840-81A00-T01	Guide, headrestraint (gray)	Front seat (MT)
85840-81A10-T01	GUIDE,HEADRESTRAINT	Front seat (MT)
85890-76FA0-P4Z	BOARD,FR BACK	Front seat (MT)
85890-76FA0-V12	Board,fr back(gray)	Front seat (MT)
85891-76FA0-V12	CLIP,BOARD	Front seat (MT)
85970-75F00-000	LOCK,FR CUSH	Front seat (MT)
85995-76G00-T01	COVER,RR INSIDE,L	Front seat (MT)
86110-78F00-000	Lifter assy, front rh	Front seat (MT)
86401-76F00-W57	ヘッドレストレイントアッシ	Front seat (MT)
86401-76F01-W57	Headrestraint assy	Front seat (MT)
86510-76F01-000	TRAY ASSY,FR UNDER	Front seat (MT)
86510-78FA0-000	BOX ASSY,CONV	Front seat (MT)
86520-76F00-000	BRACKET,UNDER TRAY	Front seat (MT)
86520-76F01-000	BRACKET,UNDER TRAY	Front seat (MT)
86601-78F00-000	Adjuster assy, fr inside rh	Front seat (MT)
86601-78F02-000	ADJUSTER ASSY,FR INSIDE,R	Front seat (MT)
86602-78FA0-000	アジャスタアッシ,フロントインサイド,レフト	Front seat (MT)
86602-78FA1-000	ADJUSTER ASSY,FR INSIDE,L	Front seat (MT)
86603-78F00-000	Adjuster assy, fr outside rh	Front seat (MT)
86603-78F01-000	ADJUSTER ASSY,FR OUTSIDE,R	Front seat (MT)
86604-78FA0-000	ADJUSTER ASSY,FR OUTSIDE,L	Front seat (MT)
86691-78F00-000	HANDLE,FR ADJ,R	Front seat (MT)
86856-76FA0-000	SPRING,FR BUCKLE	Front seat (MT)
86857-76FA0-000	COLLAR,FR BUCKLE SPRING	Front seat (MT)
86891-78FA0-000	HANDLE,FR ADJUSTER,L	Front seat (MT)
87196-83000-000	CUSHION	Front seat (MT)
