RC410

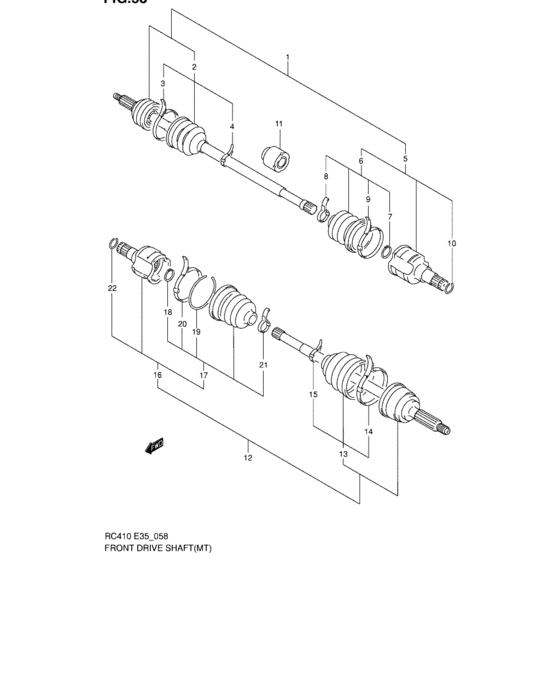

Front axle (MT) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 44101-78F00-000 | Shaft assy, front drive rh |
| 2 | 44118-75F30-000 | Boot set,wheel side |
| 3 | 44122-86010-000 | BAND,BOOT - Clamp, differential side outer boot |
| 4 | 44124-86011-000 | BAND,BOOT |
| 5 | 44117-78F00-000 | Joint assy, diff side |
| 6 | 44119-72F00-000 | BOOT SET,DIFF SIDE |
| 6 | 44119-72F01-000 | BOOT SET,DIFF SIDE |
| 7 | 44111-64B90-000 | RING,SNAP |
| 9 | 44121-60B00-000 | BAND,BOOT |
| 10 | 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) |
| 11 | 44411-78F00-000 | Damper set |
| 12 | 44102-78F00-000 | Shaft assy, front drive lh |
| 13 | 44118-75F60-000 | BOOT SET,WHEEL SIDE |
| 13 | 44118-80G11-000 | BOOT SET,WHEEL SIDE |
| 16 | 44117-78F10-000 | Joint assy, diff side |
| 17 | 44119-75F60-000 | BOOT SET,DIFF SIDE |
| 17 | 44119-75F61-000 | BOOT SET,DIFF SIDE |
| 18 | 44111-78010-000 | RING,SNAP |
| 19 | 44112-78010-000 | CIRCLIP |
| OEM | Part name | Category |
|---|---|---|
| 09381-24001-000 | RING,SNAP - Ring (od:24,d:1.6) | Front axle (MT) |
| 44101-78F00-000 | Shaft assy, front drive rh | Front axle (MT) |
| 44102-78F00-000 | Shaft assy, front drive lh | Front axle (MT) |
| 44111-64B90-000 | RING,SNAP | Front axle (MT) |
| 44111-78010-000 | RING,SNAP | Front axle (MT) |
| 44112-78010-000 | CIRCLIP | Front axle (MT) |
| 44117-78F00-000 | Joint assy, diff side | Front axle (MT) |
| 44117-78F10-000 | Joint assy, diff side | Front axle (MT) |
| 44118-75F30-000 | Boot set,wheel side | Front axle (MT) |
| 44118-75F60-000 | BOOT SET,WHEEL SIDE | Front axle (MT) |
| 44118-80G11-000 | BOOT SET,WHEEL SIDE | Front axle (MT) |
| 44119-72F00-000 | BOOT SET,DIFF SIDE | Front axle (MT) |
| 44119-72F01-000 | BOOT SET,DIFF SIDE | Front axle (MT) |
| 44119-75F60-000 | BOOT SET,DIFF SIDE | Front axle (MT) |
| 44119-75F61-000 | BOOT SET,DIFF SIDE | Front axle (MT) |
| 44121-60B00-000 | BAND,BOOT | Front axle (MT) |
| 44122-86010-000 | BAND,BOOT - Clamp, differential side outer boot | Front axle (MT) |
| 44124-86011-000 | BAND,BOOT | Front axle (MT) |
| 44411-78F00-000 | Damper set | Front axle (MT) |
