RC410

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 2,585 parts · 118 categories
RC410 ×

← Back to categories

2,585 items

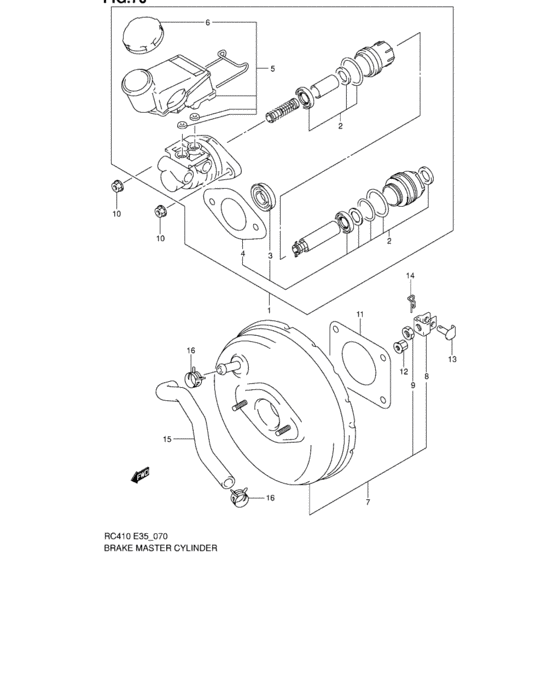

Brake master cylinder (BRAKE MASTER CYLINDER) 24
#OEMPart name
1 51100-78F00-000 Cylinder assy, brake master
1 51100-80G21-000 CYLINDER ASSY,BRAKE MASTER
1 51100-78F50-000 シリンダアッシ,ブレーキマスタ
1 51100-80G71-000 CYLINDER ASSY,BRAKE MASTER
2 51810-76F20-000 PISTON SET,BRAKE MASTER
3 51311-76F20-000 SEAL,BRAKE MASTER CYLINDER
4 51312-76F20-000 GASKET,BRAKE MASTER CYLINDER
5 51200-78F00-000 Reservoir assy, master cyl
5 51200-78F50-000 RESERVOIR ASSY,MASTER CYLINDER
6 51290-76F20-000 Cap set, reservoir
6 51220-77M00-000 CAP,RESERVOIR
7 51300-78F00-000 Booster assy, brake master
7 51300-78F50-000 BOOSTER ASSY,BRAKE MASTER
8 51182-60D10-000 CLEVIS,CYLINDER PUSH ROD
9 08316-10103-000 Nut
9 08316-1010B-000 NUT
10 09159-08075-000 NUT
11 51132-82003-000 PACKING,BRAKE MASTER CYLINDER
12 09159-08069-000 Nut
12 09159-08135-000 NUT
13 09200-08069-000 PIN
14 09385-08007-000 PIN,SNAP - Clip
15 51010-78F00-000 HOSE,BRAKE VACUUM
16 09401-15404-000 CLIP
