RB413D

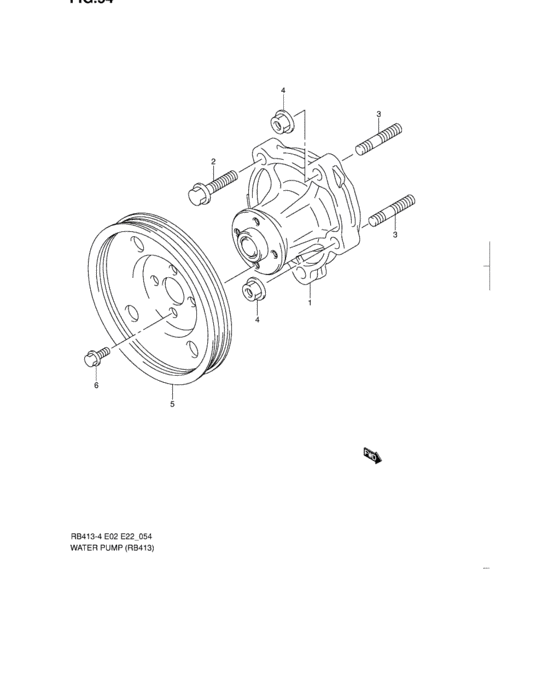

Water pump (RB413) 14
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-69G00-000 | PUMP ASSY WATER |
| 1 | 17400-69G04-000 | PUMP ASSY,WATER |
| 2 | 01550-08353-000 | Bolt, rear |
| 2 | 01550-0835B-000 | Bolt |
| 2 | 01550-0835A-000 | Bolt |
| 3 | 01421-08303-000 | Stud m 8x1.25 x - Stud bolt |
| 3 | 01421-0830A-000 | BOLT,STUD |
| 4 | 08316-10083-000 | Nut |
| 4 | 08316-1008B-000 | NUT |
| 5 | 17511-69G00-000 | PULLEY WATER PUMP |
| 5 | 17511-69G01-000 | PULLEY,WATER PUMP |
| 6 | 01550-06103-000 | Bolt, front |
| 6 | 01550-0610B-000 | Bolt |
| 6 | 01550-0610A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01421-08303-000 | Stud m 8x1.25 x - Stud bolt | Water pump (RB413) |
| 01421-0830A-000 | BOLT,STUD | Water pump (RB413) |
| 01550-06103-000 | Bolt, front | Water pump (RB413) |
| 01550-0610A-000 | Bolt | Water pump (RB413) |
| 01550-0610B-000 | Bolt | Water pump (RB413) |
| 01550-08353-000 | Bolt, rear | Water pump (RB413) |
| 01550-0835A-000 | Bolt | Water pump (RB413) |
| 01550-0835B-000 | Bolt | Water pump (RB413) |
| 08316-10083-000 | Nut | Water pump (RB413) |
| 08316-1008B-000 | NUT | Water pump (RB413) |
| 17400-69G00-000 | PUMP ASSY WATER | Water pump (RB413) |
| 17400-69G04-000 | PUMP ASSY,WATER | Water pump (RB413) |
| 17511-69G00-000 | PULLEY WATER PUMP | Water pump (RB413) |
| 17511-69G01-000 | PULLEY,WATER PUMP | Water pump (RB413) |
